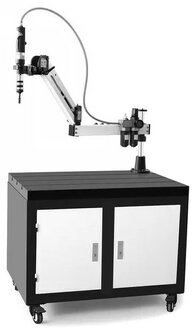

Pneumatic tap arm M3 to M12 working range 900mm

Pneumatic tap arm M3 to M12 working range 900mm
Both horizontal and vertical tapping, and 6 taps.
Trumps:
- With action radius up to 900 mm !
- Horizontally / vertically mounted device
- Speed, accurate and reliable
- Avoid breaking your tapes
- Compressed air driven (compressor required)
Suitable for:
- Use in garages, workshops, training centres, schools and machining applications
Comes with:
- Solid industrial tapping spindle
- Movable tap arm with gas springs
- Foot
- Air pressure adjustable with pressure gauge
- 6 taps with slipping clutch
Tip: Each tap size requires a tap with a slip-on clutch. The slipping clutch is set in such a way that the maximum permissible torque can never be exceeded, thus preventing the tap from breaking in, for example, expensive workpieces.
Optionally available mobile workbench with cast iron blade with T-slots, 900 x 600 mm, 795940502
- For taps M3-M12
- Speed rpm 400
- Effective range over 360° (1) Rmax mm 900
- Effective range over 360° (2) Rmin mm 200
- Recommended maximum pressure bar 6
- Type 19
- Tapping heads M3/M4/M5-6/M8/M10/M12
- Air consumption l/min +/-400 - 600
- Weight kg 20,00
- Dimensions (l x b x h)mm 650x650 x250
