Pneumatic jack - snowman 3 tons

Pneumatic jack - snowman 3 tons The pneumatic cushion lift, commonly known as the SATRA snowman, is designed and manufactured for lifting vehicles up to 3000 kg. The lift is equipped with two...

Item number

: T2g-AST SS-ABJ33

€ 280,56 *

€ 229,00 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

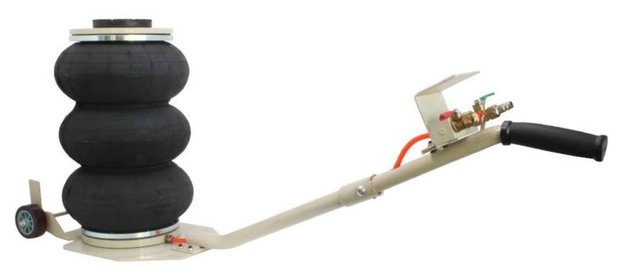

Pneumatic jack - snowman 3 tons
The pneumatic cushion lift, commonly known as the SATRA snowman, is designed and manufactured for lifting vehicles up to 3000 kg.

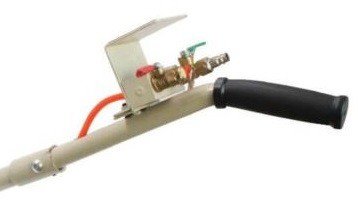

The lift is equipped with two control valves, an inlet and an outlet valve, making it very easy to operate.
After filling the bellows and disconnecting the compressed air supply, there is no danger that the lifted vehicle will automatically fall down. This is ensured by a self-acting non-return valve, which can only be opened by the lift operator. The drain valve is located at the top of the handle.
The jack is designed for easy storage and transport: a curved handle, two wheels and stands for easier storage.

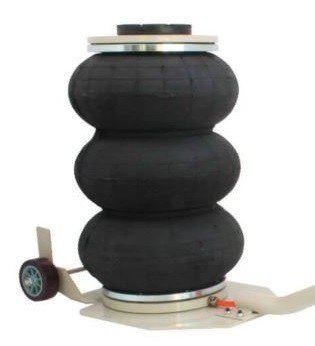

The bellows of the lift is made of reinforced rubber and the guide sleeves used inside the bellows ensure stability during lifting. In addition, a rubber separator prevents the load from being lifted.
Technical data:
- Maximum load: 3000kg
- Minimum lifting height: 145 mm
- Maximum lifting height: 400 mm
- Diameter of the rubber cushion: 270 mm
- Working pressure: 6 - 12 bar
