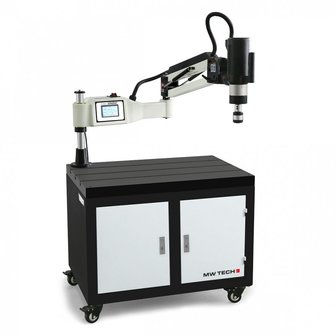

Electric tap arm m3 up to m16 - 1000 mm

Electric tap arm m3 up to m16 - 1000 mm
Electric tapping machine with touch screen, PLC control and variable speed control
Trumps:
- Energy-saving; low-maintenance
- No expensive compressor needed
- Powerful servomotor
- Less noise than pneumatic
- With PLC control via Touchscreen: simply enter spool, depth and speed.
- Variable speed control
- Equipped with horizontal as well as vertically adjustable tapping spindle
Suitable for:
- Taps of all kinds of materials
- General Industry
Characteristics:
- Powerful anodized arms
- Easily enter your data in both Dutch and French
- All pivots are equipped with lifetime lubricated bearings
- Weightless operation is achieved by the gas springs
- Low voltage and no-load voltage
- Protection against overheating
Comes with:
- With 8 taps with slipping clutch
- Dutch manual, inscriptions, CE marking, and CE certificate according to Machine Directive 2006/42/CE, and EMC Directive 2014/30/CE.
Tip: Optionally available mobile workbench with cast iron top with T-slots, 900 x 600 mm, 795940502
- For taps M3-M16
- Speed rpm 0-300
- Effective range over 360° (1) Rmax mm 1000
- Type diameter 19
- Tapping heads M4,M5,M6,M8,M10,M12,M14,M16
- Power kW 0.6
- Voltage V 1x230
- Weight kg 25,00
