Centering device 170 mm

Centering device 170 mm Trumps: - The device has a stop through which the clock can be read. - Can be used both horizontally and vertically - Different probes - Axis offset 0.01 mm Suitable...

Item number

: T2g-TV 98699

€ 163,50 *

€ 131,89 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

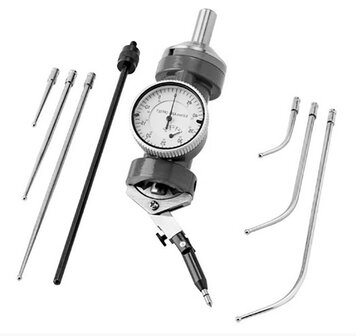

Centering device 170 mm
Trumps:
- The device has a stop through which the clock can be read.
- Can be used both horizontally and vertically
- Different probes
- Axis offset 0.01 mm
Suitable for:
- Accurately centering and measuring bores and shafts (of the machine spindle in relation to the workpiece)
- Setting the zero point
- Probes for internal and external measurements
Standard delivered with:
- Rotary bar
- Focal point sensor
- 3 Straight probes, lengths 100, 200, 300 mm for internal measurements
- 3 Curved probes, lengths 100, 200, 300 mm for external measurements
Tip: the spindle may rotate up to 800 rpm
- Shaft mm 10
- Measuring range mm 0 - 5
- Reading mm 0.01
- Range of internal diameter mm 4 - 108
- Range external diameter mm 0 - 108
- Length mm 170
- Weight kg 0.35
