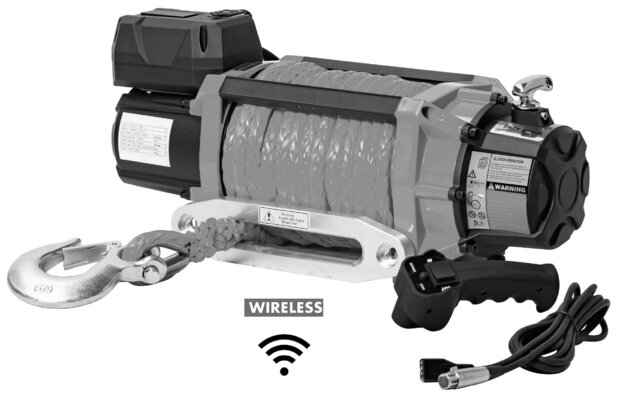

Winch 12V 8164 kg 22m synthetic cable wireless remote control
Electric winch 12 V 8.16 tons, with synthetic cable and 4.95 kW motor, suitable for use in roadside assistance, tow trucks, trucks, all-terrain vehicles, boats, yachts, sports vehicles, quads, etc.
Advantages of the synthetic cable:
Very lightweight, 80% lighter than steel cable
Manually unwinding the cable is effortless
No danger of the cable slipping away if it breaks under tension; This plastic cable does not store energy, unlike steel cables that can cause serious injuries and damage
Safe handling of the cable without the risk of steel splinters or burrs
30% higher breaking strength compared to steel cable
The cable has no 'memory', so there can be no kink in the cable
Advantages of the winch:
High capacity of 8164 kg, so also suitable for heavy vehicles such as vans, tractors, buses, etc.
High winding and unwinding speed
Wireless remote control
IP68 waterproof rating, perfect for all rough driving and off-road conditions
Automatic mechanical brake in the drum
Delivered with:
Large manual freewheel for quickly unwinding the cable
Aluminum cable guide
The remote control works both wirelessly and wired (selector button)
The range of the wireless remote control is 25 meters. The remote comes with CR2 battery
The supplied 3.7 meter cable can be connected as desired
Waterproof connection box for the power cables
Powerful 3-speed gearbox with 432:1 ratio
Heavy duty mounting brackets for bolt installation (bolts not included)
Options:
Mounting plate 8500kg in steel, for securing to a trailer, all-terrain vehicle, boat, quad, etc.
Alternatively available in voltage 24 V
Voltage V 12
Power kW 4.75
Transmission 432:1
Freewheel Owns the trait
Mechanical Brake Owns the trait
Cable type Synthetic
Cable diameter mm 14
Cable length m 22
Drum diameter mm 89
Drum length mm 228.3
Remote Control Owns the property
Speed - required ampere at load 0 kg m/min - A 7.3-75
Speed - Required Amps at load 1633 kg m/min - A 3.31-155
Speed - Required Amps at load 3266 kg m/min - A 2.44-206
Speed - Required Amps at load 4899 kg m/min - A 1.55-308
Speed - Required Amps at load 6531 kg m/min - A 1.25-384
Speed - Required Amps at load 8181 kg m/min - A 0.93-501
Power W 4.95
Protection class IP 68
Weight kg 39.00

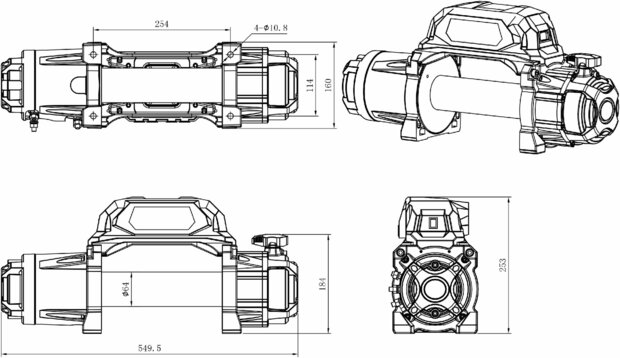

Dimensions (l x b x h) mm 582x204x288
