Universal plate clamp

Universal plate clamp Designed for plates with surface hardness up to HRC 37, suitable for lifting and handling steel plates or beams, hardened clamps, with lock for open and closed position,...

Item number

: T2g-HD 747422

€ 117,69 *

€ 101,72 *

Capacity-747422: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

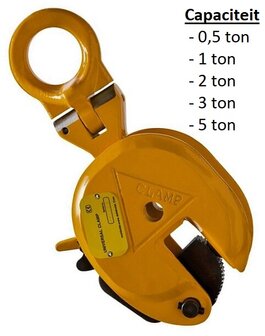

Universal plate clamp
Designed for plates with surface hardness up to HRC 37, suitable for lifting and handling steel plates or beams, hardened clamps, with lock for open and closed position, minimum load: 10% of WLL. 5% at HRC < 27, complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions.
Operating temperature -10°C - +40°C
Capacity - 0.5 ton
Gripping range - 0-15mm
Net weight - 2kg
Capacity - 1 tonne
Gripping range - 0-20mm
Net weight - 4.8kg
Capacity - 2 tonne
Gripping range - 0-25mm
Net weight - 6.5kg
Capacity - 3 ton
Gripping range - 0-30mm
Net weight - 15kg
Capacity - 5 ton
Gripping range - 0-50mm
Net weight - 23kg
