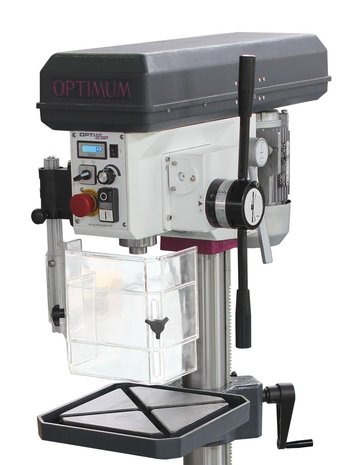

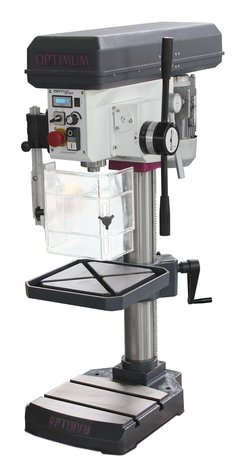

Table drilling machine MK2 power supply diameter 24 mm 3x400V

Table drilling machine MK2 power supply diameter 24 mm 3x400V
Professional table drilling machine with belt / belt drive and automatic drill feed
Advantages:
Drilling in steel up to 24 mm
Recording morse cone MK2
With automatic drill feed
Motor 850 Watt with aluminium housing, 12 speeds
Clockwise and anti-clockwise rotation
Equipped with digital speed display in the drill head
Machine lighting
Suitable for:
Better workshop, maintenance service, schools and training centers
Features:
Guaranteed concentricity accuracy better than 0.015 mm measured in the drill spindle
High-quality drive with particularly quiet running, as well as high performance with virtually constant torque over the entire speed range
Spindle with precision ball bearing
Quieter running due to 3 aluminum belt pulleys
Due to the high-quality toothed drive belts, the machine achieves significantly better power transmission and significantly less performance loss. 7M industrial V-belt, guaranteed belt life of up to 10,000 working hours
Drilling depth stop
Automatic drill feed function: the drill feed is automatically switched off after reaching the set drilling depth (0 - 95 mm) and brought back to its original position by the spring force of the pressure spring
Thick-walled cast iron column for high power absorption and stability
Heavy, precisely machined worktable with T-slots in diagonal pattern and 360° rotation around the column, and around a cooling water channel. The table is easily adjusted in height by means of a wide toothed bar
Two-point spoked wheel with soft grip
Solid, large base plate with T-slots
3x220V model only possible with transformer
Safeguards:
User-friendly operating buttons with separate start and stop push button and separate emergency stop
No-load voltage
Solid drilling shield with double screen, equipped with safety switch
V-belt cover equipped with safety switch
Lockable main switch
Supplied as standard with:
Optimum quick-action chuck 1 -16 mm B16
Cone shank according to DIN228 MK2/B16
2 T-nuts for T-slot 14mm and thread M12
English manual, inscriptions, CE-mark, and CE-declaration according to Machine directive 2006/42/CE and EMC directive 2014/30/CE
Machine fully assembled
Voltage V 3x400
Power kW 0,85
Drilling cap. in steel S235JR mm 24
Drilling capacity in continuous use S235JR mm 20
Spindle mounting Morse Konus MK 2
Number of speeds 6
Spindle speed min-1 120-3000
Drilling depth mm 85
Unloading mm 164
Column diameter mm 80
Table dimensions (w x d) mm 340x358
T-slots size/number/distance mm 14 diagonal
Drilling table rotatable ° 360
Distance spindle table mm 445
Distance spindle-foot mm 595
Foot dimensions (W x D) mm 280x300
T-slots foot mm 14
Weight kg 92.00
Dimensions (l x w x h) mm 665x434x998
