Storage System Combination Starter Kit Wooden 3 Components

Storage System Combination Starter Kit Wooden 3 Components
for setting up a service center workshop, in factories and companies or your own garage workshop at home

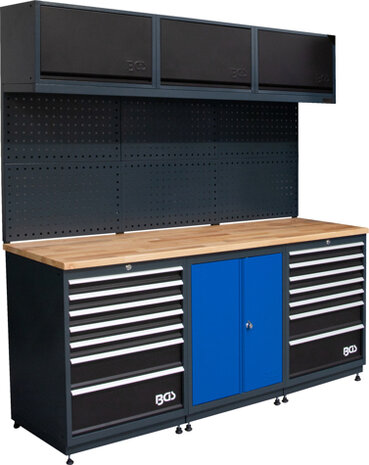

modular wall unit storage system combination
self-supporting construction, no additional fixing necessary

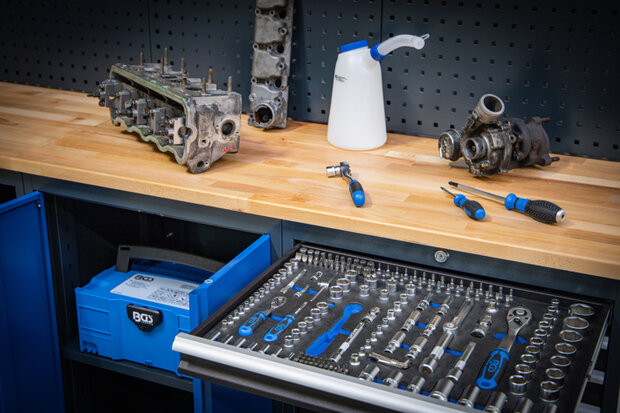

the workspace area is equipped with a 30 mm thick solid wood worktop
with perforated wall panel structure for individual and clearly arranged storage of tools
drawers with self-closing system

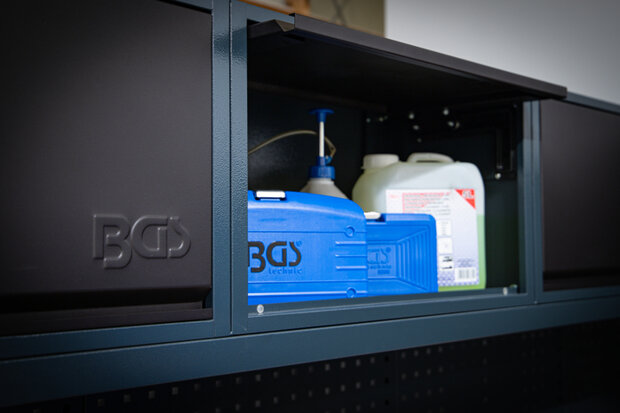

wall cupboards with shock absorbers for smooth opening and closing
offers additional storage options for optimum use of the work area
height-adjustable and individually usable shelves
individually lockable elements to prevent unauthorized access
all cabinets with height-adjustable feet
customized setup of your own workshop equipment, through combination with other elements
incl. LED lighting elements

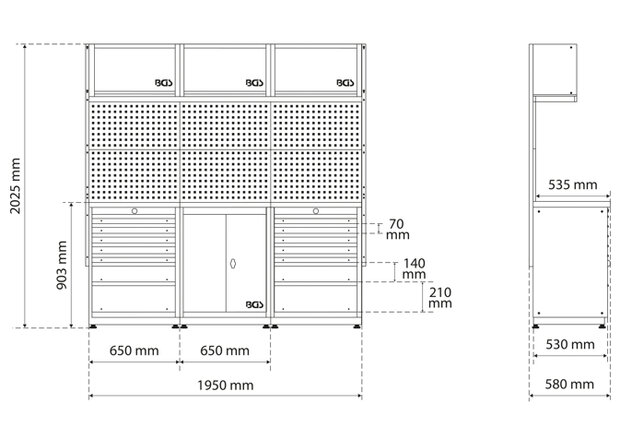

drawer width (internal dimension): 567 mm
drawer depth (internal dimension): 408 mm
drawer height (internal dimension): 10 x 48.5 mm | 2 x 118 mm | 2 x 190 mm
wall thickness body: 0.8 - 1.2 mm
scope of delivery:
3 wall cupboards with front flap, capacity up to 30 kg
1 workshop cabinet 2 doors, with 1 shelve, capacity up to 80 kg

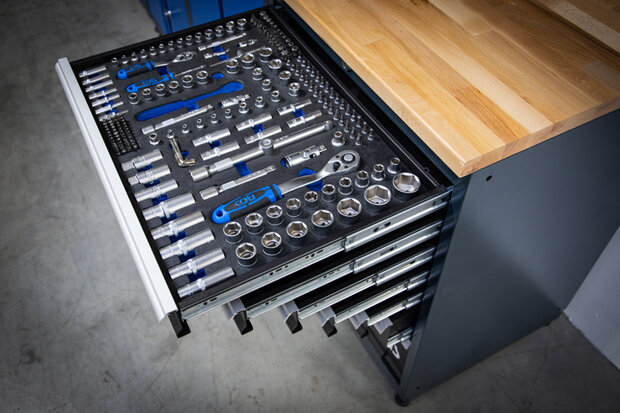

2 floor cabinets, with 7 smooth-running drawers with ball-bearing slides, capacity up to 25 kg (each drawer)
6 perforated wall panels
1 solid wood worktop, 1950 x 535 x 30 mm, capacity up to 250 kg/m²
6 keys (2 for each element)
Technical data
Gross weight    245 kg
Surface finish    Powder coated
Drawer height    10 x 70 | 2 x 140 | 2 x 210 mm
Drawer depth    420 mm
Number of drawers    14 Piece(s)
Drawer width    590 mm
Drawer pull-out    100 %
