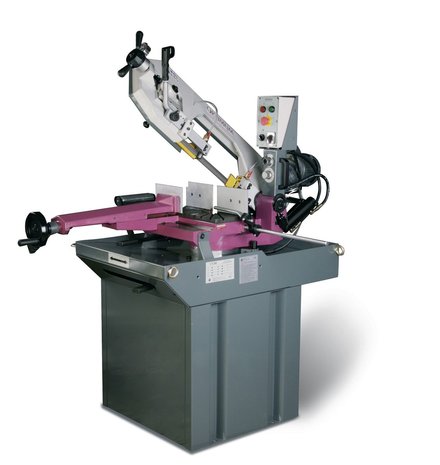

Stationary band saw - diameter 200 mm -45°/+60°

Stationary band saw - diameter 200 mm -45°/+60°
Stationary, robust band saw under double miter from -45° to +60° with 2 cutting speeds.
Advantages:
Saw blade height 27 mm

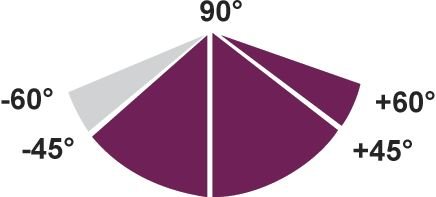

Double mitre from -45° to +60
Lowering feed by means of an infinitely adjustable hydraulic cylinder
Cooling system with cooling pump
Suitable for:
Any workshop, assembly plants, maintenance service, schools and training centers, general industry
Features:
With 2 adjustable cutting speeds 45 / 90 m/min
Large cutting capacity due to saw bracket and large dimensioned running wheels
Mitre sawing possible thanks to the mitered position of the saw bow from -45° to +60

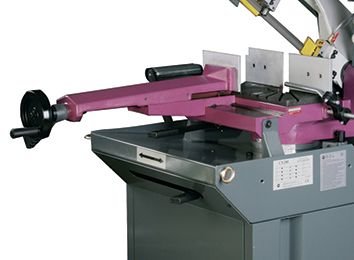

Stable cast iron clamp with quick release clamp
Saw blade tension can be clearly read with installed pressure gauge
Robust machine base guarantees stability
Ergonomically positioned control panel with separate emergency stop, separate start-stop button, coolant switch and two-speed selector switch
Precision finishing according to Optimum standards
Automatic shutdown at the end of the cutting cycle
Powerful return spring
5-point ball bearing saw blade guide
Direct adjustable cooling on the saw blade
With built-in cooling pump
Powerful and silent motor
Other voltages: 3 x 220 V and 3 x 440 V on request
Safety features:
Ergonomic control panel with separate emergency stop, separate start and stop button
No-load voltage
Safety switch in the saw handle
Supplied as standard with
Pedestal
Cooling pump
Bi-metal saw blade
Material stop
English manual, inscriptions, CE-mark, and CE-declaration according to Machine directive 2006/42/CE, and EMC directive 2014/30/CE
Variable cutting speeds No
Cutting speed m/min 45/90
Hydraulic lowering cylinder Yesa
Semi-automatic No
Automatic / CNC No
Coolant system Yes
Double angle adjustment Yesa
Power
Voltage V 3x400
Power kW 1.1
Power cooling pump kW 0.1
Capacity
Cutting capacity round 0° mm 225
Cutting capacity round -45° mm 150
Cutting capacity round +45° mm 150
Cutting capacity round +60° mm 90
Cutting capacity square 0° mm 180x180
Cutting capacity square -45° mm 150x150
Sawing capacity of square +45° mm 150x150
Cutting capacity square +60° mm 90x90
Cutting capacity rectangular 0° mm 150x245
Cutting capacity of rectangle -45° mm 120x150
Cutting capacity of rectangle +45° mm 150x190
Cutting capacity of the rectangle +60° mm 90x180
Dimensions
Saw blade height mm 27
Saw blade dimensions (L x H x D) mm 2480x27x0,90
Working height mm 980
Length with closed clamp mm 1.400
Length with opened clamp mm 1.700
Width without material stop mm 870
Width with material stop mm 1.270
Height lower end position saw frame mm 1.280
Height of upper end of saw frame mm 1.800
Weight kg 295,00
Dimensions (L x W x H) mm 1.460x730x1.060
