Spray booth 370 l + cyclone

Spray booth 370 l + cyclone

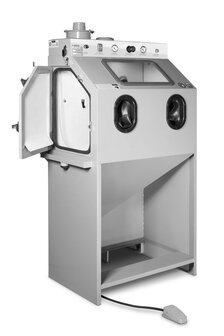

Blast cabinet injector 370 liters with vacuum cleaner and cyclone filter.
This professional blast cabinet lends itself perfectly to industrial applications such as the removal of paint and varnish layers , the cleaning of parts, preparatory surface treatment of large quantities, etc.
Suitable for blasting media such as glass beads, aluminum oxide, corundum, plastic granules,...
Advantages:
Injector type, with suctioned abrasive.
Blast gun with boron carbide blasting head ø 7 mm and plastic holder
Dust extraction 750 W with cartridge filter and high extraction rate 1170 m³/h
Donaldson HEPA cartridge filters particles down to 3µm, efficiency: 99,9%.
Cyclone filter 350 mm for efficient recycling of abrasives
Filter cleaning with pulse of compressed air, manually activated.
Booth with interior dimensions 900 x 600 x 800 mm.
Large side door with double locking and secured by microswitch.
Side door with wide collection slot for escaping abrasive.
Compact model: all components integrated in 1 unit
Supplied with:
Manual blasting gun with boron carbide blasting heads ø7 mm
Separate foot pedal electric, for operation of blasting gun
Blow gun for compressed air to blow off the work pieces
Flexible rubber gloves with large oval armholes
Filter pressure regulator and manometer
456 x 256 mm viewing window in tempered safety glass
Bright LED lighting with protective film
Rubber protection on the inside walls
Worktable / grid with 50 kg capacity
CE conformity certificate
Options:
Nozzles ø 4, 5, 6, 7 and 8 mm
All wearing parts
Capacity l 370
Working pressure bar 3-8
Air hose connection inch 3/4
Inside dimensions (l x w x h) mm 900x600x800
Viewing window dimensions mm 250x450
Illumination LED
Work table capacity kg 50
Voltage V 230
Required airflow m³/min 0,8 - 1,2
Weight kg 230.00
Dimensions (l x w x h) mm 1.020x900x1.670
