Sliding lathe guard 800

Sliding lathe guard 800
Sliding protective cover with large-dimensioned lathe screen.
Features
Third generation safety guard for chucks "Made in EU".
Protects the operator from direct contact with rotating parts of the chuck and ejected chips and from splashing lubricant - coolant.
Attaches to the head of the lathe.
Equipped with a wide, highly visible, sliding screen,
With various adjustment options for easy adjustment to all lathes.
In shockproof and oil resistant material.
Equipped with a microswitch n.2 NC contacts, is a positive contact as described in EN 60947-5-1.
Suitable for:
Conventional lathes, universally applicable
Delivered with:
CE mark
CE certificate
Instruction / assembly manual
Attention: a sliding safety screen always requires adjustments to be mounted on your lathe. A safety guard must be installed by qualified personnel. The estimated working time is about 4 hours, if an emergency stop circuit is present. If you have any questions or if you want to install the circuit, you can always contact our technical service.
Tip: When choosing the size of the chuck guard, you must take into account the turning diameter above the bed, as well as the safety of the operator.

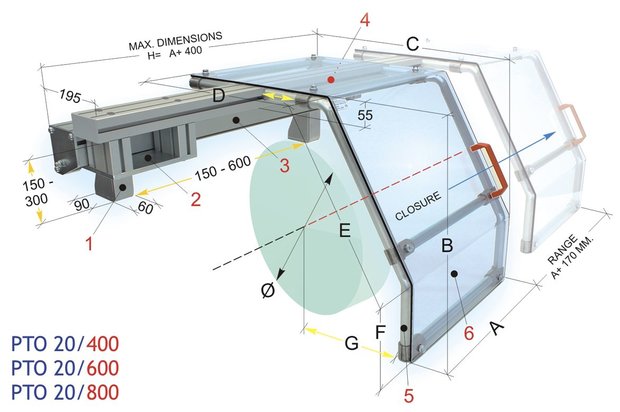

A mm 450
W mm 640
Slot depth mm 1065
D mm 800
E mm 530
F mm 180
G mm 370-950
Diameter mm 800-900
Weight kg 28,80
