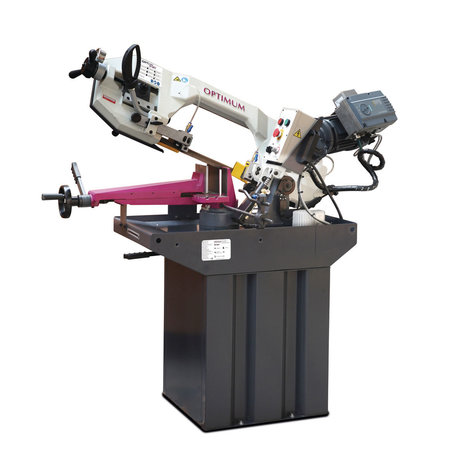

Sawing machine with frequency converter diameter 225 mm

Sawing machine with frequency converter diameter 225 mm
Stationary, robust band saw machine, angle adjustable up to 60°, with variable cutting speeds 15 - 100 m/min 400 V.
Advantages:
Saw blade height 27 mm

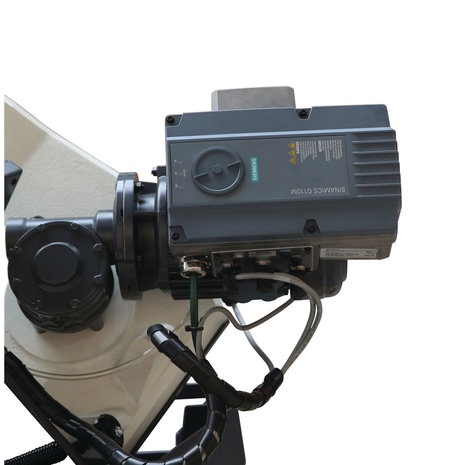

With Siemens Sinamics frequency converter 15-100 m/min 400 V
Cutting guides fitted with carbide plates

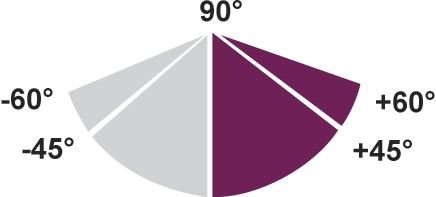

Angle adjustment up to 60
Lowering feed by infinitely adjustable hydraulic cylinder
Cooling system with cooling pump
Suitable for:
Any workshop, assembly plants, maintenance service, schools and training centers, general industry
Features:
Large sawing capacity by sawing bracket and large-dimensioned running wheels
Sawing power thanks to hydraulic cylinder with stepless adjustment
Mitre sawing possible thanks to the mitered position of the saw handle from 0° to 60
Stable cast iron clamp with quick release clamp
Saw blade tension clearly indicated by installed pressure gauge
Robust machine base guarantees stability
Ergonomically positioned control panel with separate emergency stop, separate start-stop button, coolant switch and potentiometer
Precision finishing according to Optimum standards
Automatic shutdown at the end of the cutting cycle
Powerful return spring
5-point ball bearing saw blade guide
Direct adjustable cooling on the saw blade
With built-in cooling pump
Powerful and silent motor
Saw brush for cleaning the saw blade
Safety features:
Ergonomic control panel with separate emergency stop, separate start and stop button
Neutral voltage
Safety switch in the saw handle
Saw guides with guards
According to DIN EN55011: EMC Class 2
Supplied as standard with
Pedestal
Cooling pump
Bi-metal saw blade
Material stop
English manual, inscriptions, CE-mark, and CE-declaration according to Machine directive 2006/42/CE, and EMC directive 2014/30/CE
Variable cutting speeds Property
Sawing speed m/min 15 - 100
Hydraulic lowering cylinder Property
Semi-automatic Do not possess the property
Automatic / CNC Do not own the feature
Coolant system Property
Dual angle adjustment Does not possess the property
Power
Voltage V 3x400
Power kW 1.5
Power cooling pump kW 0.1
Capacity
Cutting capacity round 0° mm 225
Cutting capacity round +45° mm 155
Cutting capacity round +60° mm 90
Cutting capacity square 0° mm 190x190
Cutting capacity square +45° mm 155x155
Sawing capacity square +60° mm 90x90
Cutting capacity rectangular 0° mm 150x235
Cutting capacity rectangle +45° mm 155x210
Cutting capacity rectangle +60° mm 90x120

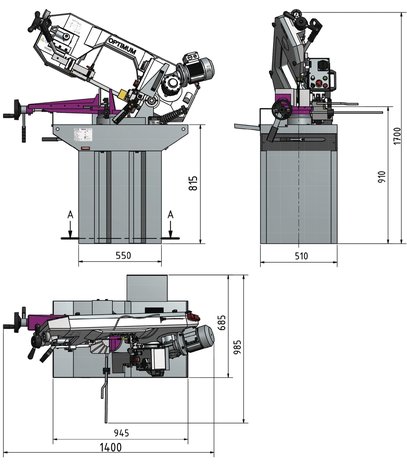

Dimensions
Saw blade height mm 27
Saw blade dimensions (L x H x D) mm 2480x27x0.9
Working height mm 910
Length with closed clamp mm 1400
Length with opened clamp mm 1700
Width without material stop mm 685
Width with material stop mm 985
Height lower end position saw frame mm 1300
Height upper end position saw frame mm 1700
Weight kg 185,00
Dimensions (L x W x H) mm 1.400x685x1.300
