Sawing Machines KKS 350 T
Sawing Machines KKS 350 T Manual circular cold saws KKS T come equipped with everything you need for machining smaller tubes and profiles. You can cut precise miters with all models. Vises on the...

Item number

T2g-MK 121102

€ 3.885,00 *
€ 3.367,00 *
Quantity:
Order

Wishlist

Do you have a question about this product?

Ask us your question

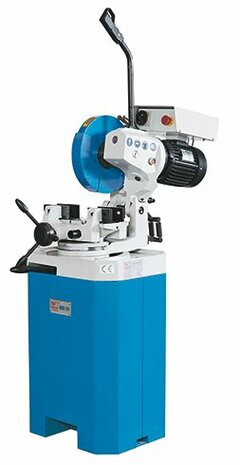

Sawing Machines KKS 350 T
Manual circular cold saws KKS T come equipped with everything you need for machining smaller tubes and profiles. You can cut precise miters with all models. Vises on the model KKS T315/350 are self-centering for optimal cutting. Models with 250/275 mm saw blades are equipped with a quick-action clamping vise.
High-precision angle cuts
Rigid vise
Rigid machine base included
Built-in coolant system
Easy operation, rugged design, and precise angular cuts make this circular cold saw a “must-have” basic for any workshop
The entire series is ideally suited for cutting solid materials, tubes, and sections of steel, iron, and light metals
The operator guides the cut via a hand-lever, where the ON/OFF switch is integrated ergonomically into the hand grip
The models KKS 250 and 275 T provide a rigid vise with quick-action clamping feature and are ideal for small batch productions

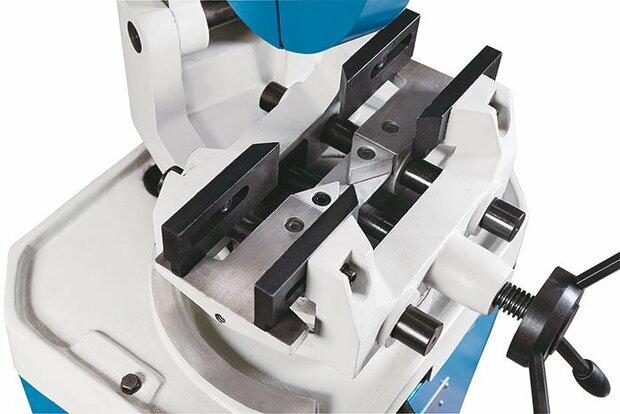

KKS 315 T / KKS 350 T feature a self-centering dual vise that hold the workpiece firmly on both sides of the saw blade

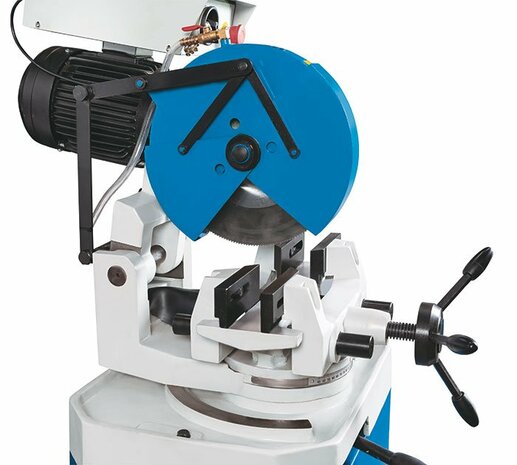

The miter can be adjusted up to +/- 45 degrees by rotating the gear head
The selected angle adjustment is fixated via a central clamping lever that is integrated into the machine frame
All models have high-torque motors, and the KKS 315 and 350 T also have reversible poles and 2 speeds
A large idler gear runs in an oil bath for low maintenance and minimal wear
The rugged machine base allows a space-saving machine setup
An integrated coolant system is part of the standard equipment on all models
Drive capacity
Main motor rating    0,75 / 1,3 kW
Working area
Max. saw blade diameter    350 mm
Shaft diameter    32 mm
Speed    18/36 1/min
Width of vise    145 mm
Working height    960 mm
Cutting Capacities
Cutting capacity 0° (round)    120 mm
Cutting capacity 0° (square)    110 mm
Cutting capacity 0° (flat) (length x width)    140 mm x 100 mm
Cutting capacity 45° (round) L    105 mm
Cutting capacity 45° (square) L    100 mm
Cutting capacity 45° (round) R    105 mm
Cutting capacity 45° (flat) L (length x width)    100 mm x 100 mm
Cutting capacity 45° (square) R    100 mm
Cutting capacity 45° (flat) R (length x width)    100 mm x 100 mm
Measures and weights
Overall dimensions (length x width x height)    0,97 m x 0,56 m x 1,83 m
Weight    236 kg
