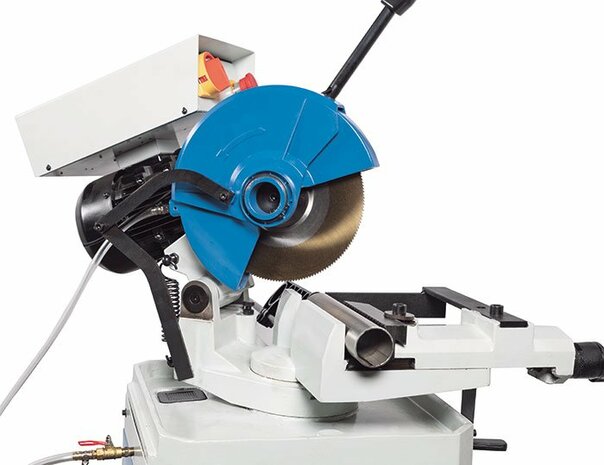

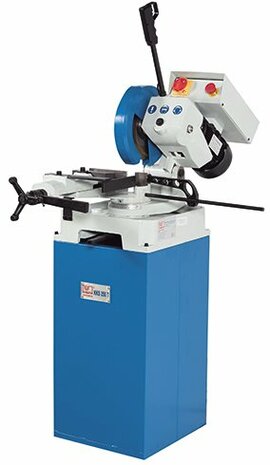

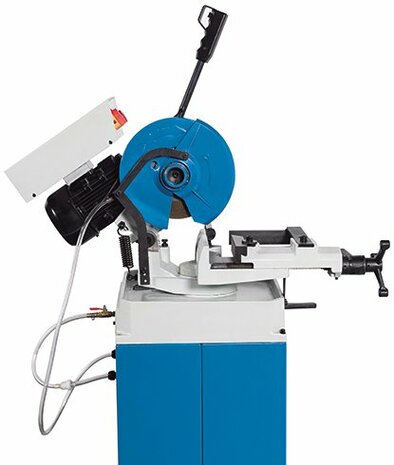

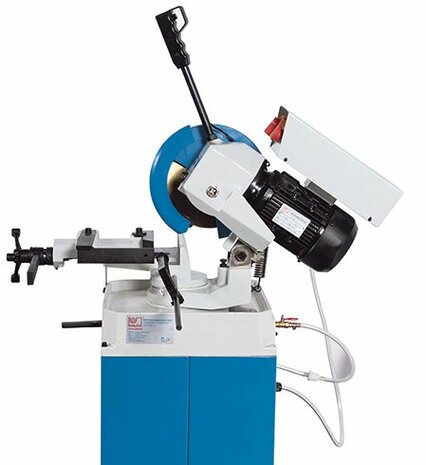

Sawing Machines KKS 275 T

Sawing Machines KKS 275 T
Manual circular cold saws KKS T come equipped with everything you need for machining smaller tubes and profiles. You can cut precise miters with all models. Vises on the model KKS T315/350 are self-centering for optimal cutting. Models with 250/275 mm saw blades are equipped with a quick-action clamping vise.
High-precision angle cuts
Rigid vise
Rigid machine base included
Built-in coolant system
Easy operation, rugged design, and precise angular cuts make this circular cold saw a “must-have” basic for any workshop
The entire series is ideally suited for cutting solid materials, tubes, and sections of steel, iron, and light metals

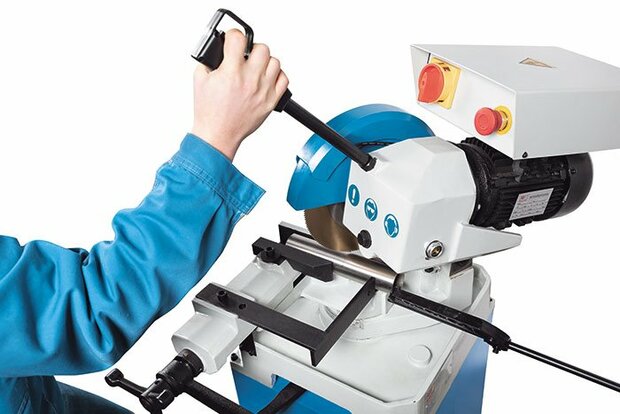

The operator guides the cut via a hand-lever, where the ON/OFF switch is integrated ergonomically into the hand grip

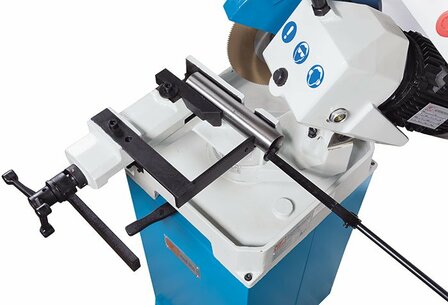

The models KKS 250 and 275 T provide a rigid vise with quick-action clamping feature and are ideal for small batch productions
KKS 315 T / KKS 350 T feature a self-centering dual vise that hold the workpiece firmly on both sides of the saw blade
The miter can be adjusted up to +/- 45 degrees by rotating the gear head
The selected angle adjustment is fixated via a central clamping lever that is integrated into the machine frame
All models have high-torque motors, and the KKS 315 and 350 T also have reversible poles and 2 speeds
A large idler gear runs in an oil bath for low maintenance and minimal wear
The rugged machine base allows a space-saving machine setup
An integrated coolant system is part of the standard equipment on all models
Working area
Max. saw blade diameter:    275 mm
Shaft diameter:    32 mm
Speed:    42 1/min
Width of vise:    100 mm
Working height:    960 mm
Drive capacity
Main motor rating:    1,1 kW
Cutting Capacities
Cutting capacity 0° (round):    70 mm
Cutting capacity 0° (square):    65 mm
Cutting capacity 0° (flat) (length x width):    90 mm x 45 mm
Cutting capacity 45° (round) L:    65 mm
Cutting capacity 45° (square) L:    60 mm
Cutting capacity 45° (round) R:    65 mm
Cutting capacity 45° (flat) L (length x width):    70 mm x 45 mm
Cutting capacity 45° (square) R:    60 mm
Cutting capacity 45° (flat) R (length x width):    70 mm x 45 mm
Measures and weights
Overall dimensions (length x width x height):    0,92 m x 0,48 m x 1,78 m
Weight:    148 kg
