Name: Reels compressed air water 20 bar steel 3/8, 18m
Brand: RAASM
Price: 526.35 EUR
Availability: InStock

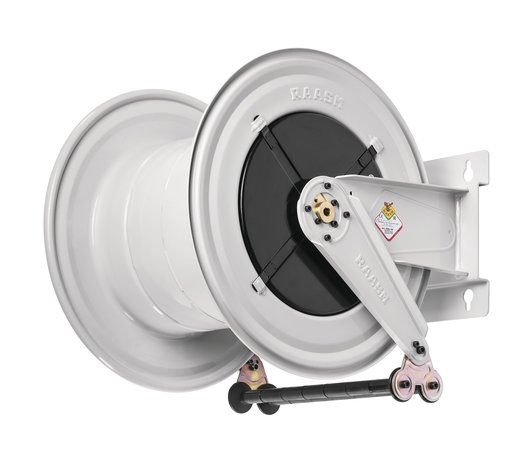

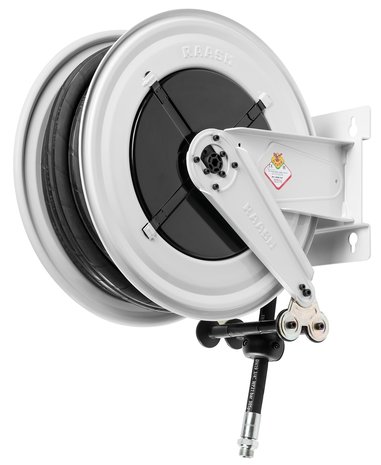

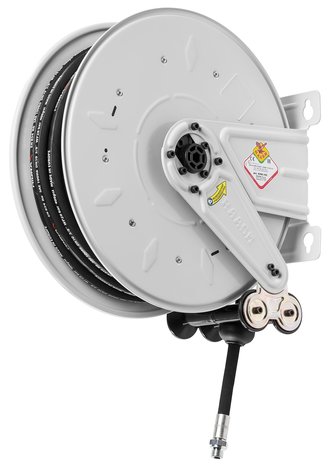

Reels compressed air water 20 bar steel 3/8, 18m

Reels compressed air water 20 bar steel 3/8, 18m

Reels compressed air water 20 bar steel 3/8, 18m Industrial hose reels for compressed air and water up to 20 bar. Models with steel drum. Advantages: Brand Raasm, Italian manufacturer of the...

Item number

: T2g-TV 07562100107

€ 652,50 *

€ 526,35 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

Reels compressed air water 20 bar steel 3/8, 18m
Industrial hose reels for compressed air and water up to 20 bar.
Models with steel drum.
Advantages:
Brand Raasm, Italian manufacturer of the highest European quality
Unrolling system with automatic stop

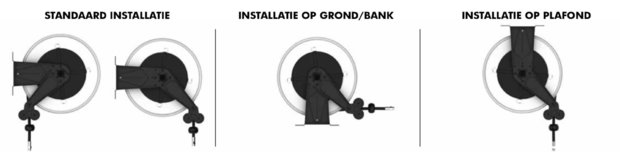

Multi-positionable unwinder arm
Wide hose guide, designed to reduce hose wear
Removable locking position for easy maintenance and free sliding use
Spring resistant to more than 20,000 work cycles
Adjustable spring retraction force
Characteristics:
Lacquered steel housing and drum
Fixed wall bracket
Synthetic rubber hose with galvanized steel couplings
Turning inlet fitting made of brass, designed to reduce pressure losses
Industrial components: Viton seals and Eberle spring
Central pivot of galvanized steel
According to Atex 94/9 II 3 GD c X
Delivered with:
Fixed wall bracket and mounting template
Hose diameter 3/8
Roll up hose length 18m
Max pressure 20 bar
Connection inch in g 1/2(f)
Connection from inch g 3/8(m)
Series 430
Max temperature 80°c
Weight kg 19.50

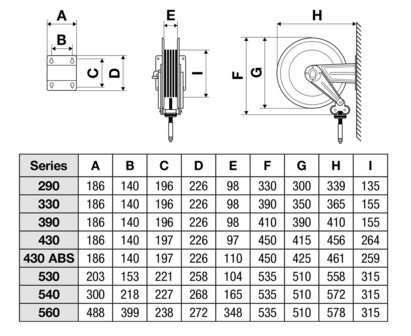

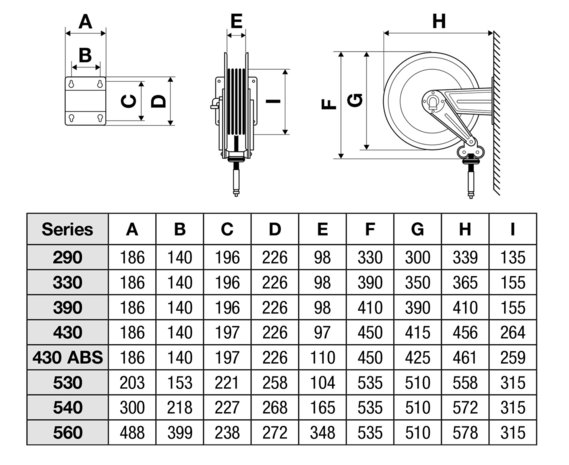

Dimensions (l x w x h) mm 456x186x450
