Name: Reel oil 150 bar
Brand: RAASM
Price: 502.15 EUR
Availability: InStock

Reel oil 150 bar

Reel oil 150 bar Steel industrial hose reels for oil and the like up to 150 bar. Advantages: Brand Raasm, Italian manufacturer of the highest European quality Unrolling system with automatic...

Item number

: T2g-TV 87562103587

€ 622,50 *

€ 502,15 *

TV 87562103587 Choose*: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

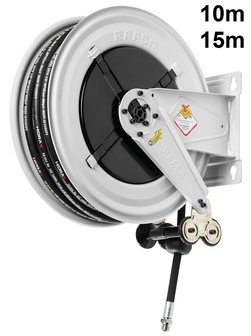

Reel oil 150 bar
Steel industrial hose reels for oil and the like up to 150 bar.
Advantages:
Brand Raasm, Italian manufacturer of the highest European quality
Unrolling system with automatic stop
Multi-positionable unwinder arm
Wide hose guide, designed to reduce hose wear
Removable locking position for easy maintenance and free sliding use
Spring resistant to more than 20000 work cycles
Adjustable spring retraction force
Characteristics:
Lacquered steel housing and drum
Fixed wall bracket
Synthetic rubber hose with galvanized steel couplings
Turning inlet fitting made of brass, designed to reduce pressure losses
Industrial components: polyurethane seals and Eberle spring
Central pivot of galvanized steel
According to Atex 94/9 II 2 GD c X
Delivered with:
Fixed wall bracket and mounting template
Hose diameter inch: 1/2
Max pressure bar: 150
Connection in inches: g 1/2 (f)
Connection from inch: g 1/2 (m)
Series: 430
Maxim0um temperature: 80°c
Weight kg: 20.50, 12.50
Dimensions (l x w x h) mm : 456x186x450
Length of roll-up hose m:
- 10m
- 15m
