Reciprocating compressor 10 bar - 270 L

Reciprocating compressor 10 bar - 270 L

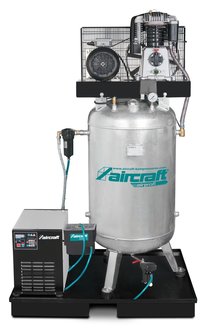

Stationary compressor station with 270 liter upright pressure tank, complete with after-treatment of compressed air and condensate on only 1m² stand plate.
Characteristics:
Complete pressure air post-treatment for dry and clean pressure air. Dry compressed air extends the life of air tools considerably.
Fine filter on the pressure tank filters out condensate and solid particles.
With refrigeration dryer and automatic condensate drain.
Condensate separator type AOWT2 separates oil and water, for perfectly separate waste water treatment.
Automatic condensate drain type AMD on the pressure tank
Mounted on a plate of only 1m², can be moved with a forklift
Space-saving 270 liter vertical tank. Perfect for small compressor rooms.
High quality compressor pump for intensive use. Low speed operation ensures quiet, vibration-free running.
Optimal cooling due to large impeller and cooling fins that reduce condensation in the tank
Low heat development, long service life.
Armored, flexible pressure line prevents breakage of the line.
Thermal motor protection against overload. Start-up relief limits current surge.
3 drain or connection points on the boiler.
Galvanized boiler, also inside, gives the best guarantee against rusting through.
CONDOR pressure switch, pressure gauge and pressure relief valve.
Supplied with:
Vibration dampers
Three-phase quality motor 3x400V.
Supplied ready to connect.
Voltage V 3x400
Suction air l/min 850
Lubricating system HOS
Delivered air l/min 680
Maximum pressure bar 10
Power kW 5,5
Tank capacity l 270
Cylinders/Stages 2/2
Speed rpm 1240
Noise level - LPA (1m) DINISO3744 dB(A) 83
Compressed air connection inch 3/4
Refrigeration dryer type AD54
Fine filter type S050FWF
Weight kg 170.00
Dimensions (L x W x H) mm 780x710x1,870
