Protective cap chisel holder 350x300mm

Protective cap chisel holder 350x300mm
Protective cap for chisel holder for lathes.
Features:
Third generation safety guard for chisel holder "Made in EU".

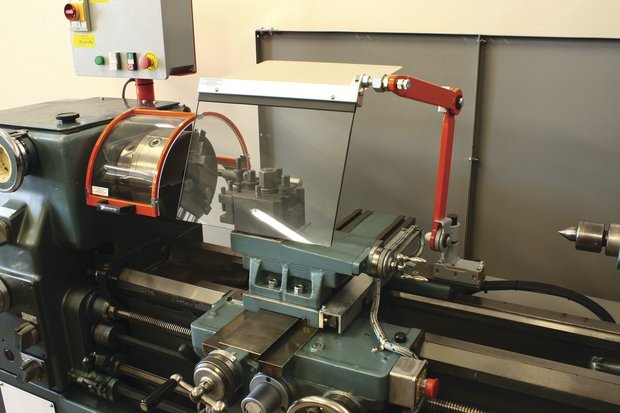

Specifically multi adjustable shield, for on the trolley of a lathe

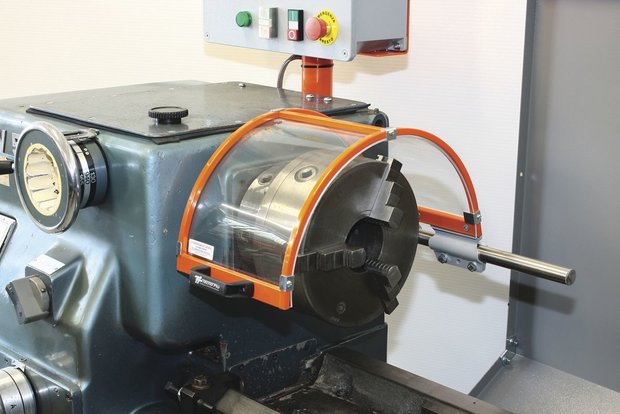

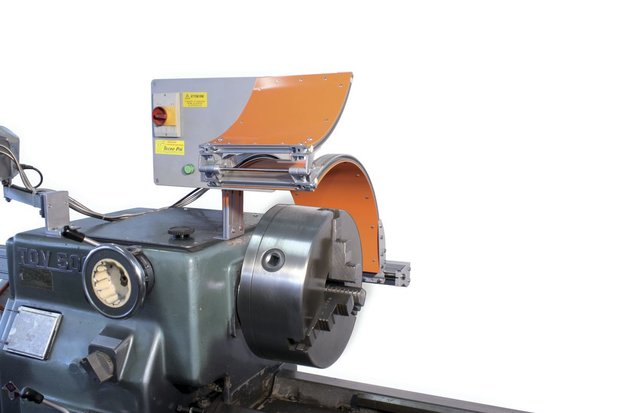

Combined with the safety guard for the chuck, this offers exceptional operator protection.
Thermoformed screen in shockproof and oil resistant material
Equipped with a microswitch n.2 NC contacts, is a positive contact as described in EN 60947-5-1.
Protects the operator from direct contact with rotating parts of the chuck and ejected chips as well as from splashing lubricant - coolant
Suitable for:
Conventional lathes, universally applicable
Delivered with:
CE mark
CE certificate
Instruction / assembly manual

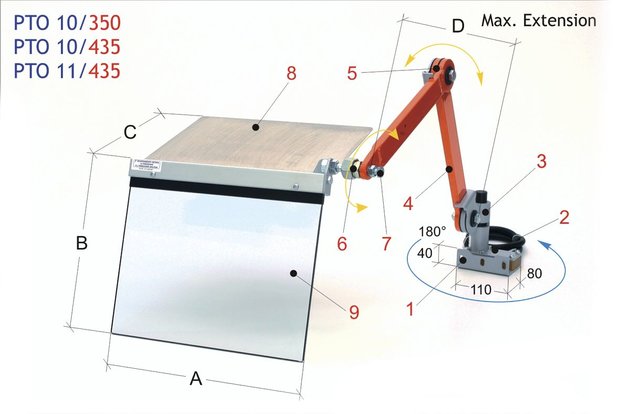

Attaches to the rear of the car. The screen, supported by the articulated arms thanks to a ball joint, is fully adjustable and protects against chips. Screens can be purchased separately.
Attention: a chisel holder shielding requires adjustments to fit on your lathe. A safety guard must be installed by qualified personnel. The estimated working time is about 3 hours, if an emergency stop circuit is present. If you have any questions or if you want to install the circuit, you can always contact our technical service.
Tip: When choosing the size of the chisel holder for shielding, you must take into account the dimensions of the mounting bracket in order to be able to mount it on the car, as well as the safety of the operator.
A mm 350
W mm 300
Slot depth mm 280
D mm 550
Weight kg 6,60
