Premium lifting magnet

Premium lifting magnet Magnetic field is produced by turning the lever, suitable for lifting and handling steel sheets, blocks or tubes, premium features, steel block protects the lever from...

Item number

: T2g-HD 759555

€ 301,90 *

€ 260,92 *

Capacity-759555: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

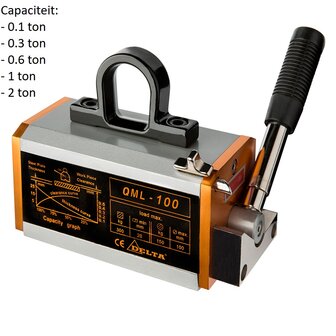

Premium lifting magnet
Magnetic field is produced by turning the lever, suitable for lifting and handling steel sheets, blocks or tubes, premium features, steel block protects the lever from shocks, more stability due to the fixed suspension eye, safe handling due to release on the body (instead of on the lever), complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions.
Operating temperature -40°C - +80°C
Safety factor - 3.5
Magnet type - Permanent NdFeB magnet
Capacity - 0.1 tons
Round material - 0.05
Min plate thickness mm - 15
Net weight - 4kg
Capacity - 0.3 ton
Round material - 0.15
Min. plate thickness mm - 20
Net weight - 11kg
Capacity - 0.6 ton
Round material - 0.3
Min. plate thickness mm - 30
Net weight - 21kg
Capacity - 1 ton
Round material - 0.5
Min. plate thickness mm - 40
Net weight - 42kg
Capacity - 2 ton
Round material - 1
Min. plate thickness mm - 60
Net weight - 105kg
