Plasma inverter 60A

Plasma inverter 60A

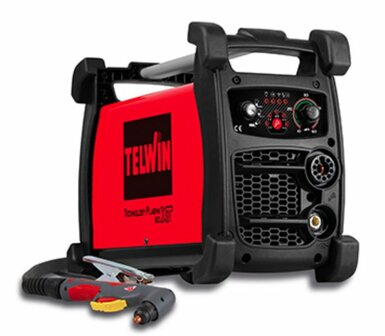

Portable plasma inverter 60A 230 V with detachable torch
Cutting system on compressed air with contact striking, controlled by microprocessor.
Suitable for cutting and gouging and without deformation of all conductive materials such as steel, stainless steel, galvanized metal, aluminum, copper, brass
Characteristics:
Large cutting range on 230 V: 10-60 Amps.
Suitable for cutting thickness up to 20 mm thick
Different positions for cutting or gouging
Switch-on time of 30%, for longer cutting time
Compact model with robust and shockproof design, suitable for use in construction, building site, steel structures, etc;
Supplied with 4-meter detachable Trafimet cutting torch
Thermal protection and protection against overvoltage, undervoltage, overload, torch short circuit
Torch undervoltage alarm light
Cutting thickness and speed are related, maximum cutting thickness is achieved with slow cutting
Supplied with ground clamp
This model operates on external compressed air sources
Voltage V 230
Maximum cutting thickness mm 20
Maximum duty cycle A 50@30%
Control range A 10 - 60
Air consumption l/min 100
Working pressure bar 4 - 5
Maximum power consumption kW 5.5
Maximum current consumption A 34
No-load voltage V 313
Power factor cos fi 0.7
Efficiency eta 0.9
Protection class IP 23
Torch Feature
Weight kg 7.00
Dimensions (l x w x h) mm 450x182x292
