Plane cutter holder along the transverse axis DIN6358 - ISO

Plane cutter holder along the transverse axis DIN6358 - ISO

Plane cutter holder along the transverse axis DIN6358 - ISO Combined surface cutter holders DIN6358, longitudinal and transverse use, with cone ISO DIN2080. Features: - Longitudinal and...

Item number

: T2g-TV 47900029347

€ 71,85 *

€ 57,96 *

Price per unit

Vlakfrees houder langs dwars DIN6358 - ISO 790002934:

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

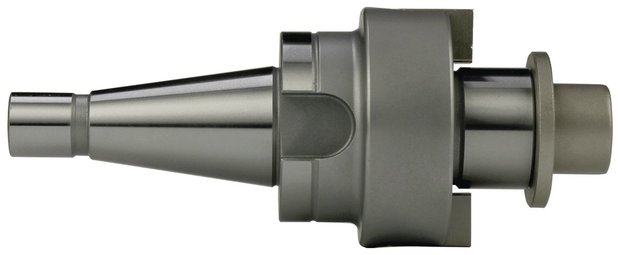

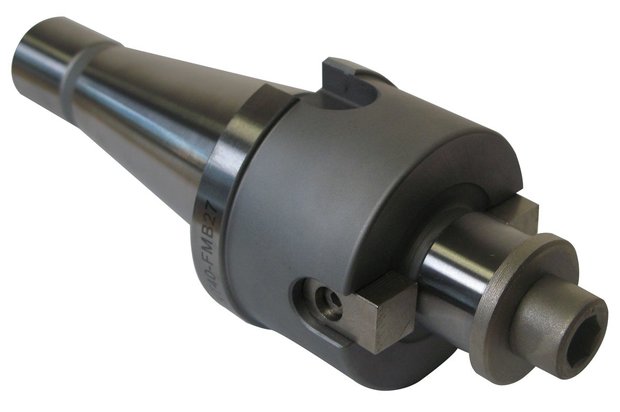

Plane cutter holder along the transverse axis DIN6358 - ISO
Combined surface cutter holders DIN6358, longitudinal and transverse use, with cone ISO DIN2080.
Features:
- Longitudinal and transverse use
- Hardened and ground
- With cone connection ISO to DIN2080
- According to DIN6358
Suitable for:
- The inclusion of surface milling, jacketed milling, disc milling of all known brands with a hole in the shaft from 22 to 32 mm.
- Other sizes on request.

Aansluiting ISO	Boring vlakfrees D	Breedte mm	Lengte mm	Gewicht kg
30	22	10mm	129mmL	1,00kg
30	27	12mm	134mmL	1,00kg
30	32	14mm	141mmL	1,00kg
40	22	10mm	156mmL	1,00kg
40	27	12mm	159mmL	1,00kg
40	32	14mm	178mmL	1,00kg
