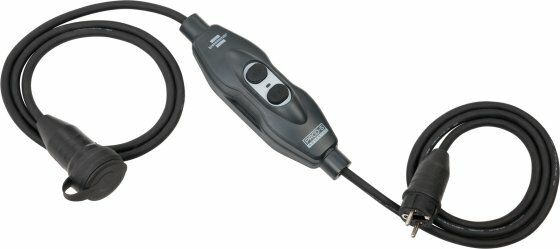

PRCD-S ADVANCED protective adapter cable IP44 3m H07RN-F3G1.5

For professional use on construction sites and outdoors, the PRCD-S ADVANCED with protective adapter cable 3m from offers a reliable and robust solution to protect the user when using electrical appliances on sockets that are not known to be working properly. The RN cable is very robust, oil-resistant and suitable for permanent use in outdoor areas. Thanks to improved testing for protective conductor interruption from approx. 1kO, glove detection (device cannot be switched on in the event of a fault even with insulating gloves) and the comprehensive function test by checking the entire signal chain from protective conductor monitoring to the RCD switching function, safety is further increased. The mobile personal protection system also impresses with the following features:

* Oil-resistant 3m rubber cable (H07RN-F 3G1.5)
* Solid rubber earthing contact plug and solid rubber earthing contact coupling with cover
* Protection class: IP44
* Rated voltage: 230V
* Rated current: 16A
* Rated power: 3680W
* Rated residual current: I?n = 30mA
* All-pole (L/N/PE) switching residual current circuit breaker type A
* Undervoltage release
* No automatic switch-on after voltage recovery
* No switching on if the protective conductor is interrupted or energised
* As soon as voltage occurs on the protective conductor during operation or the protective conductor is interrupted, the protective device switches off
* If external voltage occurs on the protective conductor, e.g. by drilling into a line of another circuit, the protective device does not disconnect the protective conductor
* For use on construction sites in accordance with DGUV 203-006 (formerly BGI 608) and permanent outdoor use
* PRCD in accordance with VDE 0661
* Category 2 equipment (K2 DGUV 203-005): Use for rough operation with high mechanical, physical and chemical impacts
