Mobile gantry crane 2ton wide and high

Mobile gantry crane 2ton wide and high

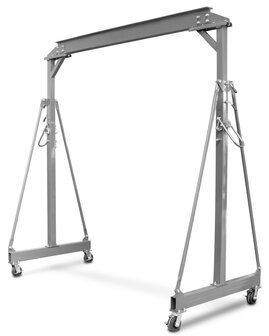

Mobile gantry crane 2 tons, with 3200mm width and 4200m height.
Due to its wide and high dimensions, this crane is suitable for use with trucks, trailers, vans, tractors, trailers, etc.
This mobile crane is ideal for all kinds of lifting work in transport and logistics, assembly and assembly work in production plants and in areas where there is no fixed overhead crane.
Features:
Model 2 Ton
High model: Adjustable height 2740-4200 mm.  Free inner dimension is adjustable between 2580-4000mm high
Wide model: 2955mm free inner dimension. Suitable for lifting loads from various vehicles such as trailers, vans on trucks
Beam size 180x100mm
Swivel wheels with brake
Stable and safe, yet compact and easy to move
Reinforced upper beam and wheel bar with cross slats
Height can be adjusted in unloaded condition, with a set of levers and safety bolts
Suitable chain hoists:
Hand hoist 2000kg 6 meters with hook
Electric chain hoist 150kg 6 meters with hook 230V
Electric chain hoist 2000kg 6 meter with hook 3x400V, industrial
Electric chain hoist 2000kg 6 meter with trolley 3x400V, industrial
Chain hoists with hook can be attached to the gantry crane with a beam clamp
Electric chain hoist 300kg 6 meters with hook 230V
Electric chain hoist 2000kg 6 meters with hook 230V
Suitable wire rope hoists:
Electric wire rope hoist 200kg 12 meters with trolley 230V
Electric wire rope hoist 500kg 18 meters with trolley 230V
Other lifting accessories:
Manual trolley 2 tons free-running
Manual trolley 2 tons with chain drive
Beam clamp 2 tons Suitable for suspending chain hoists with hook, or for lifting H-beams
Lifting clamp 2 tons suitable for lifting steel profiles and sheet material
Lifting magnets from 100 to 1000kg
Note: always choose lifting accessories with a capacity in accordance with that of the hoist used.
Height minimum mm 3500
Height maximum mm 4200
Maximum height mm 4200
Cordless Does not have the feature
Weight kg 178.00
Dimensions (l x b x h) mm 2,4x1,2x2,900
