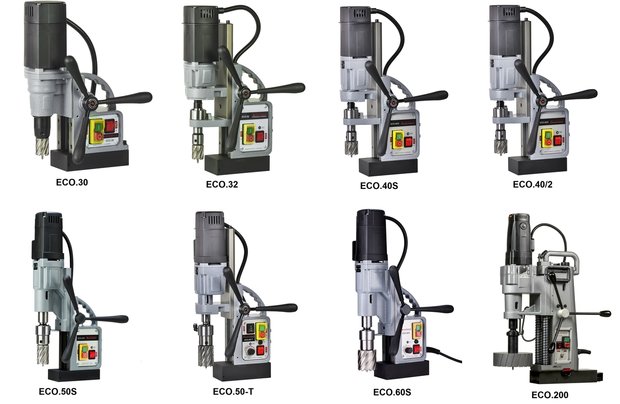

Magnetic core drill
ECO.30 Diameter 12-30mm
The Eurobore ECO.30 is the lightest 30mm (1 3/16″) magnetic core drill on the market. Because of its small size, the Euroboor ECO.30 is the ideal magnetic core drill for drilling holes in small spaces. This machine barely measures 27.5 cm (11″) in length and weighs only 8.5 kg (18.7 lbs). With an output of 900 W (8.2 A), this small ECO.30 magnetic core drill drills holes in metal up to ø 30 mm (1 3/16″) easily and quickly.
Core drills Ø 12 - 30 mm, Core drills Ø 12 - 30 mm, Spiral drills (Weldon) Ø 1 - 13 mm,Countersink Ø 10 - 35 mm,
Length 275 mm, Width 190 mm, Height 293 - 383 mm,Stroke 90 mm, Weight 8.5 kg, Magnet (l x w x h) 160 x 80 x 37 mm, Magnetic force 1200 kg, Motor power 900 W, Total power 950 W, Speed (no load) 775 rpm,
Speed (loaded, 900 W) 400 rpm, Recess 19.05 mm, Power supply 220 - 240 V / 50 - 60 Hz
ECO.32 Diameter 12-32mm
The powerful compact Euroboor ECO.32 magnetic core drill has a powerful 1000 W (9.1 A) motor with single-speed gearbox. This portable magnetic core drill is suitable for core drills up to Ø 32 mm (0.2"), Weldon spiral drills up to Ø 13 mm (1/2″) and countersinks up to Ø 40 mm (1 9/16″). This lightweight and reliable magnetic drill is a true addition to any workplace. The ECO.32 is easy is a premium quality core drilling machine.
Core drilling Ø 12 - 32 mm, Spiral drilling Ø 1 - 13 mm, Countersinking Ø 10 - 40 mm, Length 320 mm, Width 210 mm, Height max. 370 - 512 mm, Stroke 150 mm, Weight 11 kg*, Magnet (l x w x h) 160 x 80 x 42 mm, Magnetic force 1500 kg, Motor power 1000 W, Total power 1050 W, Speed (no load) 775 rpm, Speed (load, 1000 W) 440 rpm, Uptake 19.05 mm, Power supply 220 - 240 V / 50 - 60 Hz
ECO.40S Diameter 12-40mm 1150W
The Eurobore ECO.40S magnetic drill is the lightest ø 40 mm (1 9/16″) core drill on the market, suitable for core drills up to 110 mm (4 5/16″) in length. Our portable ECO.40S magnetic core drill has a powerful 1150 W (10.5 A) high efficiency motor, with less heat generation and therefore longer life. The oil-lubricated single-speed gearbox ensures optimum motor efficiency and service life of key components.
Core drilling Ø 12 - 40 mm, Spiral drilling Ø 1 - 16 mm, Countersinking Ø 10 - 45 mm, Length 264 mm, Width 180 mm, Height max. 360 - 440 mm, Stroke 145 mm, Weight 10.5 kg*, Magnet (l x w x h) 160 x 80 x 42 mm, Magnetic force 1500 kg, Motor power 1150 W, Total power 1200 W, Speed (no load) 600 rpm, Speed (load 1150 W) 380 rpm, Arbor 19.05 mm, Power supply 220 - 240 V / 50 - 60 Hz
Eco.40/2 diameter 12-40mm 1050W
Our compact Eurodrill ECO.40/2 is the perfect magnetic core drill for core drills up to 40 mm (1 9/16″) and spiral drills up to 13 mm (1/2″). This magnetic core drill has a powerful 1050 W (9.5 A) motor, integrated carriage and two-speed gearbox. This portable core drill also benefits from integrated drill cooling and lubrication to make the drilling process as efficient as possible.
Core drills Ø 12 - 40 mm, Spiral drills Ø 1 - 13 mm, Countersinks Ø 10 - 45 mm, Length 320 mm, Width 210 mm, Height max 395 - 540 mm, Stroke 150 mm, Weight 11. 5 kg*, Magnet (l x w x h) 160 x 80 x 42 mm, Magnetic force 1500 kg, Motor power 1050 W, Total power 1100 W, Speed (no load) (I) 720 rpm, (II) 1300 rpm, Speed (load 1050 W) (I) 315 rpm, (II) 560 rpm, Recording 19.05 mm, Power supply 220 - 240 V / 50 - 60 Hz
Eco.50S Diameter 12-50mm
The Euroboor ECO.50S magnetic core drill converts maximum power through its oil-lubricated two-speed gearbox. This improves motor efficiency and service life of key components. This portable industrial magnetic core drill has an integrated carriage that provides stable support, faster drilling times and accurate hole dimensions.
Core drills Ø 12 - 50 mm, Spiral drills Ø 1 - 23 mm, Countersinks Ø 10 - 55 mm, Length 320 mm, Width 200 mm,
Height max. 445 - 615 mm, Stroke 170 mm, Weight 12 kg*, Magnet (l x w x h) 160 x 80 x 42 mm, Magnetic force 1700 kg, Motor power 1250 W, Total power 1300 W, Speed (no load) (I) 315 rpm, (II) 690 rpm, Speed (load 1250 W) (I) 235 rpm, (II) 415 rpm, Gearing MC3 19.05 mm, Power supply 220 - 240 V / 50 - 60 Hz
