Machine vises with pull-down system, and with dial 170 - 230mm

Machine vises with pull-down system, and with dial 170 - 230mm The design of a pull-down vise makes it more difficult to remove clamped material. The movable clamping jaws are pressed against the...

Item number

: T2g-MK 920104

€ 420,50 *

€ 391,50 *

Size: 920104: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

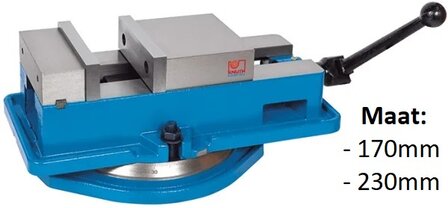

Machine vises with pull-down system, and with dial 170 - 230mm
The design of a pull-down vise makes it more difficult to remove clamped material. The movable clamping jaws are pressed against the guide when clamping. This special design makes it easier to clamp flat workpieces.
Hardened and precision-ground steel jaws
Made of high-quality cast-iron
Dial turns 360° and has 1° scale division
Pull-down system: absolutely secure workpiece hold even during cutting of heavy parts
Hardened and precision-ground steel jaws
Dial turns 360° and has 1° scale division
Parallelism ± 0,03 mm / 100 mm
Precise, hardened jaw guides
Made of high-quality cast-iron
Size:
- 170mm
Clamp width 170 mm
Swivel-base, diameter 230 mm
Jaw width 160 mm
Jaw height 45 mm
Height 157 mm
Weight 34 kg
- 230mm
Clamp width 230 mm
Swivel-base, diameter 268 mm
Jaw width 200 mm
Jaw height 50 mm
Height 179 mm
Weight 56 kg
