Lifting magnet

Lifting magnet Suitable for lifting and handling steel plates, blocks or tubes, magnetic field is produced by turning the lever, complies with the Machinery Directive 2006/42/EC. Supplied with...

Item number

: T2g-HD 794167

€ 202,08 *

€ 174,65 *

Capacity-794167: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

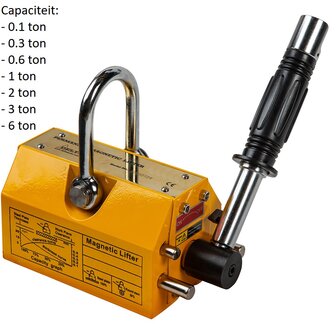

Lifting magnet
Suitable for lifting and handling steel plates, blocks or tubes, magnetic field is produced by turning the lever, complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions.
Operating temperature -40°C - +80°C
Safety factor - 3.5
Magnet type - Permanent NdFeB magnet
Capacity - 0.1 ton
Round material - 0.05
Min plate thickness mm - 15
Net weight - 3kg
Capacity - 0.3 ton
Round material - 0.15
Min. plate thickness mm - 25
Net weight - 12kg
Capacity - 0.6 ton
Round material - 0.3
Min. plate thickness mm - 30
Net weight - 24kg
Capacity - 1 ton
Round material - 0.5
Min. plate thickness mm - 40
Net weight - 43kg
Capacity - 2 ton
Round material - 1
Min. plate thickness mm - 55
Net weight - 105kg
Capacity - 3 ton
Round material -
Min. plate thickness mm - 60
Net weight - 160kg
Capacity - 6 ton
Round material -
Min. plate thickness mm - 100
Net weight - 302kg
