Injection Pump Assembling and Disassembling Tool Set for Ford 2.0 ECOblue

Injection Pump Assembling and Disassembling Tool Set for Ford 2.0 ECOblue
for removing and installing the diesel high-pressure pump
high pressure pump wheel is held in correct position
no adjustment of the engine timing necessary
suitable for the following vehicle models with 2.0 TDCi ECOblue engine:
Ford Edge (2018-2021)
Ford Focus (2018-)
Ford Galaxy (2018-2021)
Ford Kuga (2019-)
Ford Mondeo (2019-2021)
Ford Ranger (2019-)
Ford S-MAX (2018-2021)
Ford Transit (2016-)
Ford Transit Custom (2016-)
Ford Tourneo Custom (2016-)
for engine code:
BC2X, BCCA, BCCB, BCCC, BCDA, BCFB, BCRA, BJFA, BJFB, BJFC, BJFD, BJRA, BJRB, BKFA, BKFB, BKFC, BKFD, BKRA, BKRB, BLFA, BLFB, BLFC, BLFD, BLHA, BLRA, BLRB
YL2X YLCA, YLCB, YLCC, YLDA, YLDC, YLF6, YLFA, YLFB, YLFS, YLR6, YLRA, YMCA, YMCB, YMCC, YMDA, YMF6, YMFA, YMFB, YMFS, YMHA, YMR6, YMRA, YN2X, YNCA, YNF6, YNFA, YNFB, YNFS, YNR6, YNRA

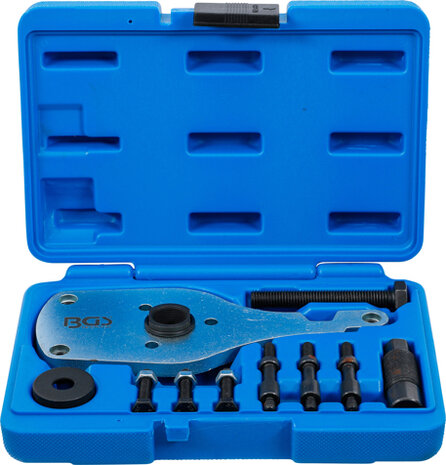

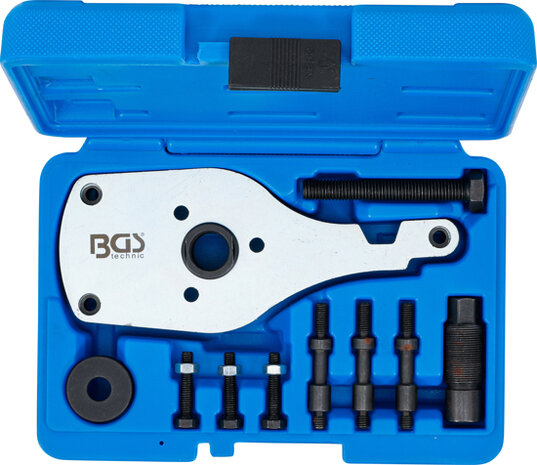

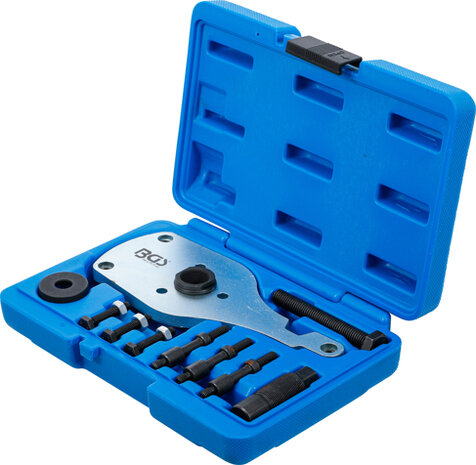

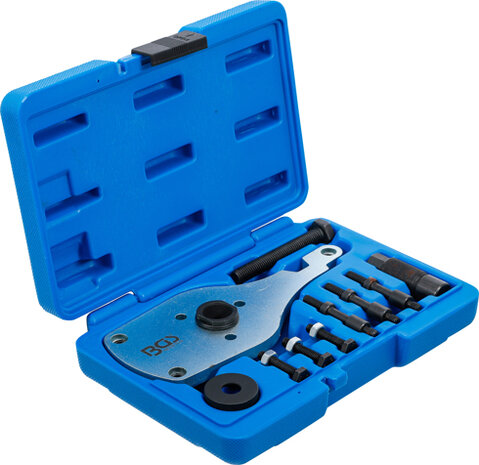

scope of delivery:
1 base plate, to be used as OEM 303-1635/1
1 pressure screw, to be used as OEM 303-1635/2
3 support bolts, to be used as OEM 303-1635/3
1 assembling screw, to be used as OEM 303-1635/6
3 fastening screws
3 nuts
1 cover ring
Technical data
Gross weight    1048 g
To be used as OEM1    303-1635/1 | 303-1635/2 | 303-1635/3 | 303-1635/6 Ford
