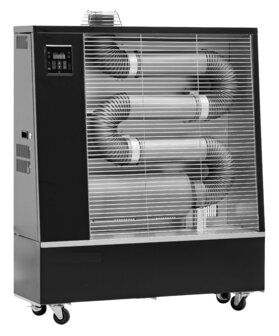

Infrared diesel radiator 16kw
Infrared diesel heater 16 kW with extremely quiet operation, large heated surface and with large fuel tank 50 liters.
Compact and silent radiator, suitable for directly heating people with infrared heat radiation. Suitable for medium-sized workspaces such as studios, garages, showrooms and shops.
Thanks to the low-noise, odorless and radiation-free design, it is very suitable for: Assembly and maintenance workshops, logistics and picking, garages, lettering, winter work in greenhouses, indoor work in agriculture and horticulture, tents and events, mobile construction sites and road works, semi-covered activities such as sports competitions, all kinds of outdoor events.
Advantages:
The infrared heating with a large radiant surface provides pleasant warmth evenly to the surrounding room. The large surface area of the heater ensures even and gentle heat radiation at the right height for both standing and sitting work
Low noise. With only 48 decibels, this heater works almost silently
Low odor. Flue gases are completely burned.
No air movement. The heat is distributed thanks to the glowing steel tubes, there is no fan and therefore no disturbing wind or noise pollution as with classic warm air blowers
High-quality Korean heater technology ensures complete combustion and the purest possible emissions
Environmentally friendly: 99.9% of the fuel is burned
Optional flue gas discharge removes gases and smoke, reduces odor nuisance indoors, and at the same time recovers extra heat from the discharged gases
Works on both fuel oil and diesel
Large 50 liter tank, for an extremely high autonomy of 35 hours (3 to 5 working days)
High quality Danfoss spray head, commonly available on the market
Built-in thermostat 0-40°C on the digital control panel
Compact design. With its limited construction depth of only 300 mm, this heater can be positioned compactly against a wall, without blocking the passage
Characteristics:
Suitable for heating rooms from 182 to 928m³, depending on the insulation and ventilation of the room. The better the insulation value of the building elements (lower K-value), the larger the space you can heat.
Minimum heatable volume of 182m³, with a K-value of 2.5: in case the building is not insulated, with single glazing, full stone walls, roof with old corrugated sheets, or for areas where gates are regularly open.
Maximum heatable volume of 928m³, at a K-value of 0.5: in case the building is well insulated according to recent building standards
Fuel consumption of 1.27kg/h (1.51L/h)
50 liter tank, with a high autonomy of 35 hours
Suitable for professional and temporary use in areas with sufficient ventilation.
Easy to move thanks to 4 rotating wheels
Extensive LCD display with display of: current temperature, thermostat temperature, timer setting and display lock
Alarm indicators for: misfire, low fuel level, overheating and rollover protection
Limited construction depth of 305 mm, takes up little space against a wall
Dimensions: 950mm, depth: 305mm, height: 1100mm
Suitable for rooms with sufficient ventilation
Overheating protection
1.5 m long power cable with plug
4 freely rotating wheels 65 mm
IP24 waterproof
Option:
Flue gas discharge set for wall duct. Diameter 100 mm, consisting of stainless steel channels, with a length of 1 m vertically, 1 bend of 90°, and 0.9 m horizontally. The wall duct itself is not included and must be custom-made by a professional.
Remark:
Ventilation is necessary with this heater. Ensure sufficient ventilation to prevent oxygen deficiency or poisoning from combustion gases and carbon monoxide.
Do not use the heater in closed spaces and in homes. It is recommended to preventively install a carbon monoxide sensor in the room where you use the heater.
Heat output kW/h 16
Heat type Radiant heat
Energy source Diesel / Petroleum / Fuel oil
Thermostat Own the property
Fuel tank capacity l 50
Fuel consumption l/h 1.51
Heated space m³ 182-928
Voltage V 230
Autonomy u 35
Cable 1.5
Switch Does not own the property
Suitable for outdoor use Do not own the property
Wall Mount Do not own the property
Mobile Own the property
Frequency Hz 50
Noise level dB(A) 48
Power consumption kW 0.08
Weight kg 50.00
Dimensions (l x b x h) mm 950x305x1,100
