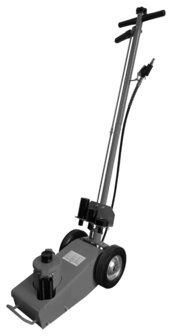

Hydro-pneumatic garage jack 22ton

Hydro-pneumatic garage jack 22ton
This air hydraulic jack is suitable for jacking heavy vehicles such as buses, trucks, agricultural vehicles, construction machinery, cranes, etc.
Characteristics:
Portable model of only 36kg
Lifting capacity 22 tons
Works on compressed air, the connection is at the bottom of the base
1-stage floor jack with 130 mm stroke
Maximum lifting height up to 535 mm (with highest extension)
Supplied with 4 extensions 20, 25, 60 and 100mm. (20, 60 and 100mm: 48mm diameter and 25mm: 68mm diameter)
Long lever with 3 positions. The handle can be set completely flat so that the jack can easily be placed halfway under the axle of the vehicle
2 large rubber coated wheels, for good maneuverability and easy transport. Also suitable for rough surfaces such as gravel, roadsides, etc.
Spring set for return of the cylinder without load
CE compliant
Working pressure    bar    8
Number of stairs        1
Height maximum    mm    448
Minimum lifting height    mm    225
Maximum lifting height    mm    535
Quicklift pedal        Does not have the feature
Compressed air        Owns the property
Capacity    t    20T
Weight    kg    36.00
Dimensions (l x b x h)    mm    660x360x280
