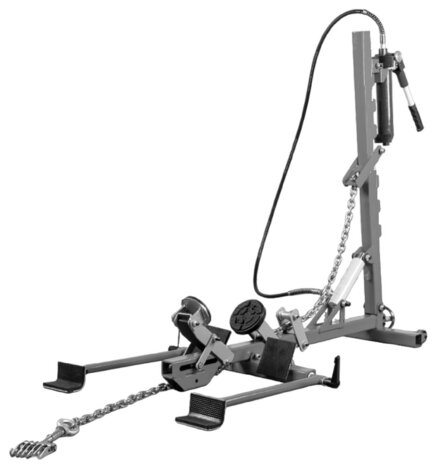

Hydraulic straightening bench 5 tons

Hydraulic straightening bench 5 tons
Hydraulic straightening bench 5 tons for removing dents from bodywork.
This pulling system has a very high pulling capacity due to its powerful grip and stability, and is able to correct any kind of dents and damage.
Advantages:
Repairing damage to sheet material of door panels, wheel arches, bumpers, sills.
Pulling out all kinds of dents with 1 device
Multifunctional, can be used in different positions
Hydraulic system, requires little muscle power
Characteristics:
Hydraulic cylinder with capacity 5 tons
Steel base construction, length 1200mm, height 1160mm
The 6-finger pulling claw is attached to pins that are welded onto the dent. (pens not included)
The chain can run directly to the pulling claw, or indirectly via the lower chain guide

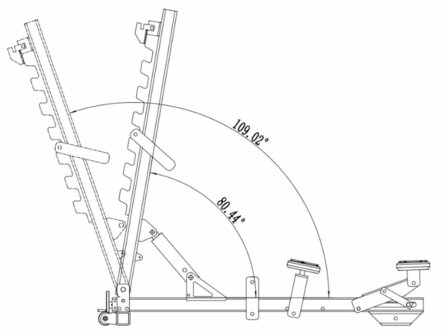

The vertical drawbar is operated by the cylinder and has a working angle of 30°
7 chain positions
2 rubber support blocks ensure a firm clamping of the straightening bench between the chassis and the garage floor
When removing larger dents on sills, the supplied side support is used.
Side support with width 780mm
The straightening bench can be attached to the side support in 3 positions. The height can be adjusted depending on the chassis height of the vehicle
The side support comes with 2 pairs of rubber support plates: 1 pair flat, and 1 pair curved
2 steel transport wheels ø50mm
Delivered with
Steel chain 1.5 meters
Hydraulic hand pump
Rubber oil hose 2 meters
6-fingered claw
Side support with 2 pairs of rubber support plates
Options:
Hydraulic oil Hydro 46, 5 liters (ref. 790030046). The amount required is  +- 2 litres.
Weight    kg    48.00
Dimensions (l x b x h)    mm    1,005x650x1,160
