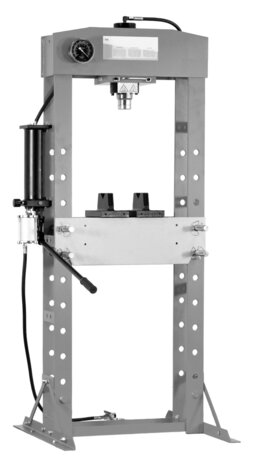

Hydraulic pneumatic press 30T mobile cylinder

Hydraulic pneumatic press 30T mobile cylinder
Advantages:
Operation with compressed air (hand valve) and by hand (lever).
Laterally movable cylinder allows pressing closer to the edge of the frame. Useful when pressing to the side of large workpieces
Reliable pumping mechanism with double speed
Supplied with 2 press blocks (V-blocks)
Optional punch set
Capacity and dimensions:
Capacity: 30 tons
Cylinder vertical course: 150 mm
Cylinder horizontal course: 200 mm (mobile cylinder)
Worktable distance the cylinder head: min. 150 mm - max. 1030 mm
Bed width / space between the legs: 535 mm
Characteristics:
Manual and pneumatic operation:
The hydropneumatic pump is controlled by compressed air through a manual valve, providing power and speed during operation.
Pump with 2 speeds: a high speed when approaching the workpiece unloaded, and a slower speed during pressing. The speed automatically reduces in case of back pressure
The pump can also be operated manually with a lever, for precise and accurate work
The base frame, on which all forces come during pressing, is fully welded from 1 solid frame, which increases the strength and longevity of the press. We use no bolts or screws to assemble the press.
The work table is supported by 4 heavy duty locking pins with safety clips, with the work table resting on the bottom 2 pins. This allows for easier height adjustment of the table without trapping the pins.
Pump with overload valve
Removable cylinder head (inside diameter of the intake: 25 mm). Allows connection of the optional punch set or other press forms and bending knives to the head
Compressed air working pressure: 7.5 to 8.5 bar and air flow rate: 200 l/min
Compressed air valve with manual operation, and connection with EURO connector
Supplied with:
Pneumatic valve for operation with compressed air
Set of set of V-blocks for straightening or pressing shafts, bars and tubes. Dimensions of a V-block: length 206 mm, width 130 mm, height 105 mm
Pressure gauge with indication of pressing force
Pre-filled with hydraulic oil
Easy assembly: the press is delivered in 1 piece. Only the 2 side support legs are assembled on site
Optional compressors:
Compressor Silent, 50 liter tank 1.1 kW with flow rate 280 liters/minute
Compressor Silent, 100 liter tank 2.2 kW with flow rate 480 liters/minute
Compressor 100 liter tank 2.2 kW with flow rate 480 liters/minute
Compressor 200 liter tank 2.2 kW with flow rate 300 liters/minute
Options:
Set of 8 round punches from 10 to 30mm, for machining bushings, seals, roller bearings, etc. Supplied with adapter.
Hydraulic oil. Oil tank with quantity: 1400 ml.
Wide range of push broaches and guide bushings for pushing keyways from 2 to 25mm. (ex: 10mm:. Contact our product specialists for a proper selection of these accessories.
Alternative presses:
Hydraulic press 15 Ton with hand operation
Hydraulic Press 20 Ton with hand and foot control
Hydraulic Press 30 Ton with hand and foot control
Hydraulic Press 50 Ton with hand and foot control
Hydraulic Pneumatic Press 20 Tonnes
Hydraulic Pneumatic Press 30 Tonnes
Hydraulic Pneumatic Press 50 Ton
Hydraulic Pneumatic Press 75 Ton
Type of Press Hydropneumatic
Cylinder 150
Heading cylinder G mm 150
Number of speeds 2
Required air pressure bar 7.5
Air flow l/min 200
Capacity t 30
Speed up m/min 120
Speed down under pressure m/min 33
Speed down without pressure m/min 160
Mobile cylinder yes

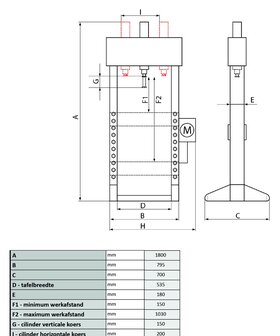

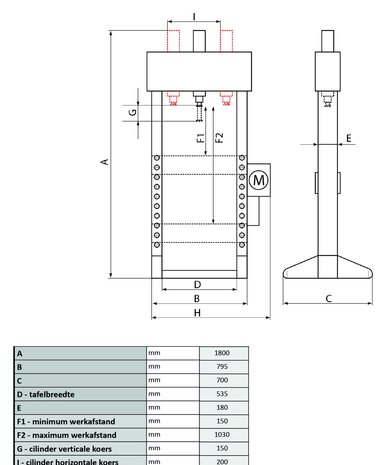

A mm 1800
B mm 795
C mm 700
D mm 535
Diameter cylinder mm 58
E mm 180
F min mm 150
F max.mm 1030
H mm 910
I mm 200
L1 mm 1292
L2 mm 412
Weight kg 166.00
Dimensions (l x b x h) mm 795x700 x1800
