Electro-hydraulic lift bridge 600 kg

Electro-hydraulic lift bridge 600 kg

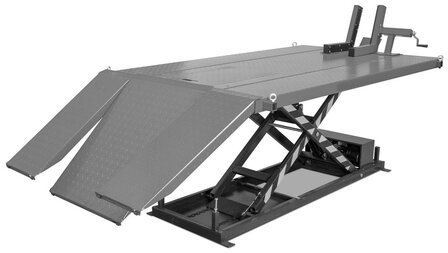

Electro-hydraulic scissor lift for motorcycles and electric bicycles, quads, electric utility vehicles, riding mowers, with capacity of 600 kg and table width of 1200 mm.
Model TPSL600W is supplied with a set of table extensions. This allows you to convert the basic table of 600m wide into a wide table of 1200mm.
Advantages
Widened table 1200mm wide. Basic table 600mm wide
Supplied with 2 extensions, each 300mm wide
Table length 2000mm
Fully electric lifting, compressed air connection not required
Infinitely adjustable height, always the optimal ergonomic working height
Lifting capacity 600kg
Removable inspection hatch at the back of the table for working underneath the vehicles
Supplied with wheel clamp with spindle clamping, for motorcycles, electric bicycles, etc.
characteristics
Maximum height: 935 mm
Minimum height: 250 mm
Voltage 1x230V
Supplied with ramp
Suitable for both surface-mounting and installation in the workplace
Separate control unit on 24 V, with 3 meter cable, up/down button and emergency stop. The cable allows you to easily operate the bridge all around
Manual unlocking for lowering the table
Industrial quality hydraulic pump and cylinder
Pump motor power of 550 W
Hydraulic safety valve against overload
Mechanical blocking in case of hydraulic leak
Equipped with safety against lowering in case of obstruction, safety valve against overload and safety in case of hydraulic leak
Self-lubricating bearings in the hinges
Options:
Hydraulic oil (art. 790030046)
Capacity    kg    600
Power    kW    0.55
Voltage    V    230
Loading surface dimensions    mm    2000x1200
Maximum height    mm    935
Minimum height    mm    250
Required oil    l    3
Weight    kg    245.00
Dimensions (l x b x h)    mm    2,000x1,200x250
