Hydraulic Bottle Jack with Double Piston 5 ton

Hydraulic Bottle Jack with Double Piston 5 ton

Hydraulic Bottle Jack with Double Piston 5 ton for lifting vehicles, machines, trailers and mobile homes ideal for changing tires, repair work or breakdowns with safety valve including plug-in...

Item number

: T2g-B 70042

€ 111,58 *

€ 108,00 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

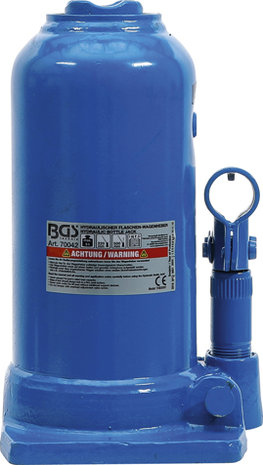

Hydraulic Bottle Jack with Double Piston 5 ton
for lifting vehicles, machines, trailers and mobile homes
ideal for changing tires, repair work or breakdowns
with safety valve

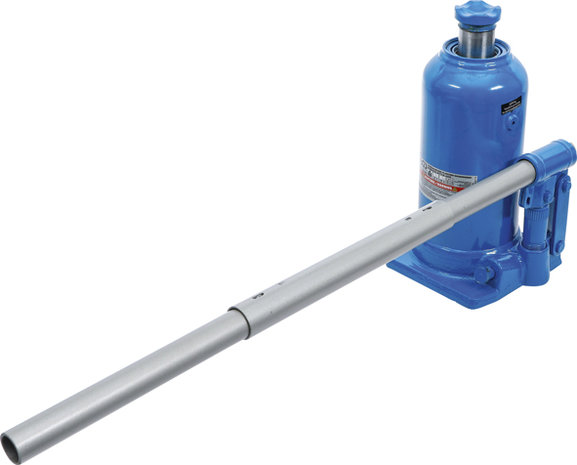

including plug-in telescopic piston rod
massive, welded steel construction
high stability and stability thanks to a large base plate
for high vehicle weights
compact design

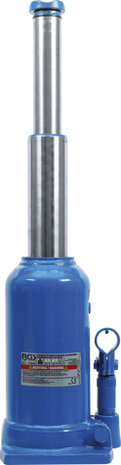

with dual piston and high lifting range
applicable in tight spaces
Technical data
Gross weight   8810 g
Max. load bearing capacity   5 t
Lifting height   280 mm
Min. height   220 mm
Max. height   500 mm
Plunger diameter   45 | 32 mm
Diameter - holding plate   41 mm
Dimensions base plate (W x D x H)   135 x 130 mm
Handle (diameter x length x thikness)   21,8 x 220 x 2,2 | 25,5 x 220 x 1,5 | 21,8 x 220 x 2,2 mm
Lever length   580 mm
Wandungsstärke Hebel   2,2 | 1,5 | 2,2 mm
Gewicht (ohne Hebel)   7,2 kg
