Hara Push Walk Cat

Hara Push Walk Cat Permanently lubricated, ball bearing wheels ensure smooth movement, adjustable by adjusting shims, detriment protection brackets serve as drop, break and impact protection. Also...

Item number

: T2g-HD 7319532

€ 149,23 *

€ 128,97 *

Capacity-7319532: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

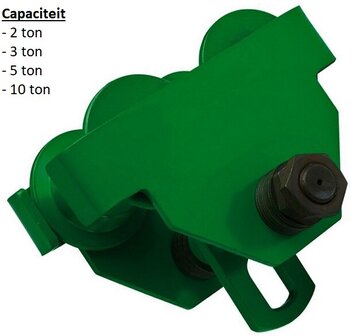

Hara Push Walk Cat
Permanently lubricated, ball bearing wheels ensure smooth movement, adjustable by adjusting shims, detriment protection brackets serve as drop, break and impact protection. Also equipped with tilt protection, suitable for most I- and H-beams, complies with the Machinery Directive 2006/42/EC. Supplied with test certificate,CE declaration of conformity and operating instructions.
Operating temperature -10°C - +60°C
Load type - Only for goods, not suitable for lifting people
Capacity - 2 tons
Test load - 2.5 ton
Suitable beam width - 76-165mm
Min. radius - 1.1m
Wheel diameter - 90mm
Net weight - 20.5kg
Capacity - 3 ton
Test load - 3.75 ton
Suitable beam width - 76-305mm
Min. radius - 1.4m
Wheel diameter - 110mm
Net weight - 36.8kg
Capacity - 5 ton
Test load - 6,25 ton
Suitable beam width - 88-305mm
Min. radius - 1m
Wheel diameter - 122mm
Net weight - 56kg
Capacity - 10 ton
Test load - 12.5 ton
Suitable beam width - 125-305mm
Min. radius - 1.3m
Wheel diameter - 151mm
Net weight - 91.9kg
