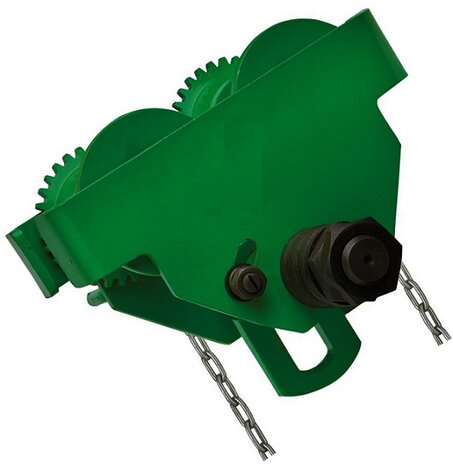

Hara Chain Pulley 10 tonne 2.5 meter operating height

Hara Chain Pulley 10 tonne 2.5 meter operating height

Hara Chain Pulley 10 tonne 2.5 meter operating height Adjustable by adjusting shims, detent protection brackets serve as fall, break and impact protection, additionally equipped with tilt...

Item number

: T2g-HD 748412

€ 1.121,97 *

€ 1.009,97 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

Hara Chain Pulley 10 tonne 2.5 meter operating height
Adjustable by adjusting shims, detent protection brackets serve as fall, break and impact protection, additionally equipped with tilt protection, permanently lubricated, ball bearing wheels ensure smooth movement, suitable for most I- and H-beams, standard with hand chain for 3 meters working height, complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions.
Capacity - 10 tons
Test load - 12.5 tons
Suitable beam width - 125-305mm
Min. radius - 1.3m
Wheel diameter - 151mm
Net weight - 98.4kg
Operating temperature -10°C - +60°C
Load type - Only for goods, not suitable for lifting people
