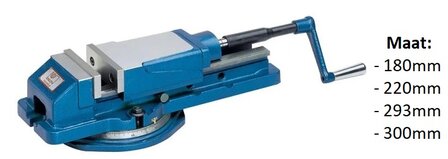

HS Hydraulic Machine Vises

HS Hydraulic Machine Vises
Hydraulic machine vises are designed for heavy machining and feature an adjustable clamping range, vibration-buffered clamping, and hydraulically assisted fixation.
Wide clamping range
Hydraulically assisted clamping force
Many sizes available
Hardened and precision-ground jaws and body
High precision and wear-resistant material ensure long service-life
Clamping pressure is up to ten times as high as with conventional machine vises
Swivel-base mounted vise body, 360° swivel
Constant clamping pressure, unaffected by vibration and shock
Hydraulic power booster
Size:
- 180mm
Clear opening: 180 mm
Overall dimensions (length x width x height): 0,53 m x 0,16 m x 0,09 m
Weight: 26 kg
Holding force: 165 bar
Swivel-base, weight: 10 kg
Jaw width: 110 mm
Jaw height: 36 mm
- 220mm
Clear opening: 220 mm
Overall dimensions (length x width x height): 0,67 m x 0,19 m x 0,12 m
Weight: 42,5 kg
Holding force: 345 bar
Swivel-base, weight: 12 kg
Jaw width: 130 mm
Jaw height: 48 mm
- 293mm
Clear opening: 293 mm
Overall dimensions (length x width x height): 0,8 m x 0,24 m x 0,13 m
Weight: 75 kg
Holding force: 413 bar
Swivel-base, weight: 22 kg
Jaw width: 150 mm
Jaw height: 51 mm
- 300mm
Clear opening: 300 mm
Overall dimensions (length x width x height): 0,8 m x 0,28 m x 0,16 m
Weight: 125 kg
Holding force: 550 bar
Swivel-base, weight: 32 kg
Jaw width: 200 mm
Jaw height: 65 mm
