Gantry crane 2t + chain hoist and trolley 2000 kg

Gantry crane 2t + chain hoist and trolley 2000 kg

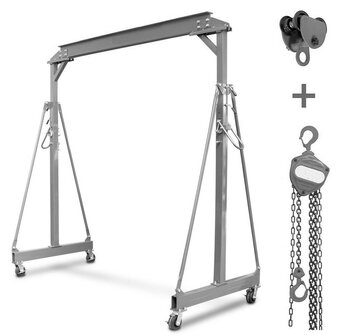

Pack consisting of: Mobile gantry crane, Chain hoist and Trolley 2000 kg
With CE certified
Mobile gantry crane 2 tons
Characteristics:
Adjustable height 2500 - 3600 mm with levers and safety bolts
Swivel wheels with brake
Stable and safe and at the same time compact and lightly movable
Reinforced upper beam and wheel bar with cross slats
Beam clamp 88 x 160 mm
Chain hoist 2 tonne
Features:
With load pressure brake that holds the load at any position
Top and bottom hook equipped with safety lip
Galvanized chains
Options:
Suitable chain hoists:
Hand hoist 2000kg 6 meters with hook
Electric chain hoist 150kg 6 meter with hook 230V
Electric chain hoist 300kg 6 meters with hook 230V
Electric chain hoist 2000kg 6 meter with hook 230V
Electric chain hoist 2000kg 6 meter with hook 3x400V, industrial
Electric chain hoist 2000kg 6 meter with trolley 3x400V, industrial
Chain hoists with hook can be attached to the gantry crane with a beam clamp
Suitable wire rope hoists:
Electric wire rope hoist 200kg 12 meters with trolley 230V
Electric wire rope hoist 500kg 18 meters with trolley 230V
Other lifting accessories:
Manual trolley 2 tons free-running
Manual trolley 2 tons with chain drive
Beam clamp 2 tons Suitable for suspending chain hoists with hook, or for lifting H-beams
Lifting clamp 2 tons suitable for lifting steel profiles and sheet material
Lifting magnets from 100 to 1000kg
Note: always choose lifting accessories with a capacity in accordance with that of the hoist used.
Capacity t 2
Chain length m 6
H minimum mm 420
Force required for maximum elevator N 314
Number of chains 2
Link chains dia.mm 8
A mm 164
B mm 124
Slot depth mm 30
D mm 182
Drive chain length m 12
Weight kg 194.00
Dimensions (l x w x h) mm 2,540x1,100x2,520
