Format saw 250mm diameter - 125cm

Format saw 250mm diameter - 125cm

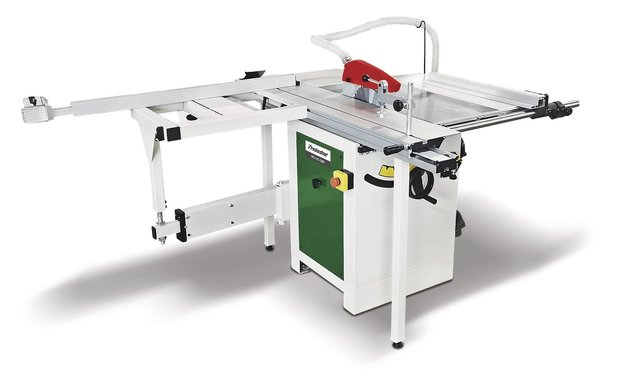

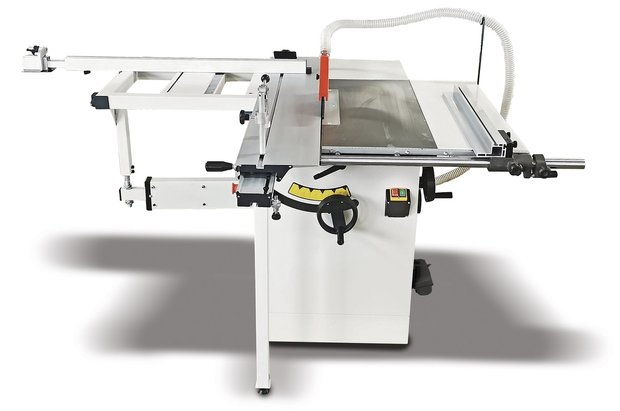

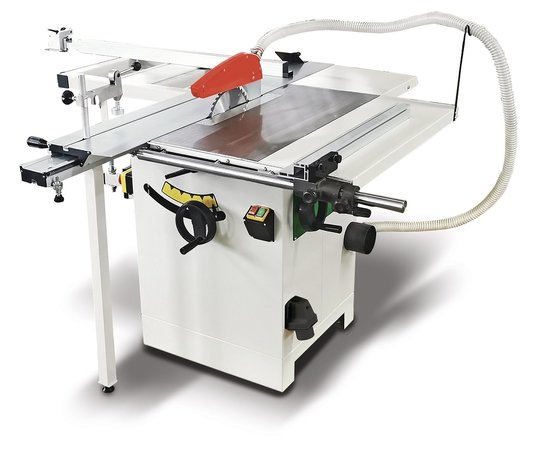

Robust format saw with runner.
Advantages :
Standard table extension and broadening make it easy to work with larger workpieces

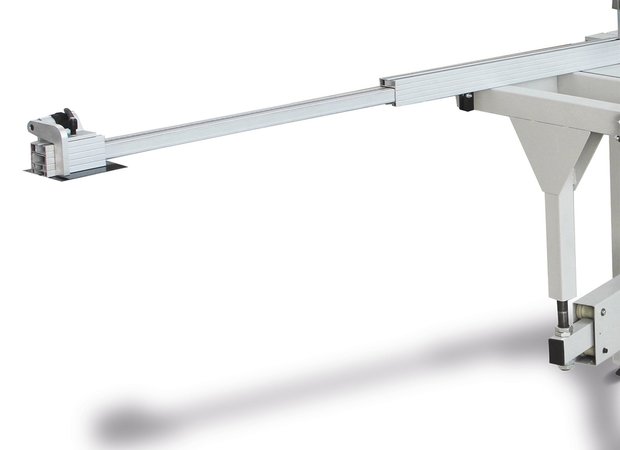

Telescopic stop and foldable stop for large workpieces
Telescopic stop 45 degrees tiltable on both sides
Suitable for :
Soft and hard wood
Workshops, schools and training centers
Features :
Powerful motor 2.1 kW
Heavy cast iron table for low vibration work

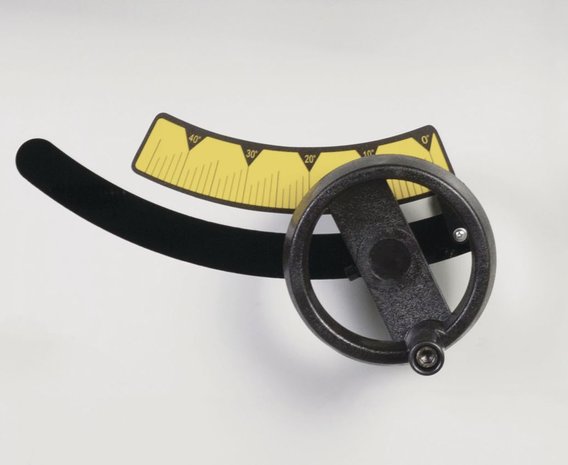

Saw blade tiltable from 0 to 45° via rotary knob on tooth bar
Large central extraction nozzle ø 100mm
Saw blade guard with extraction nozzle ø 38mm
Aluminium parallel fence with fine adjustment
Standard delivered with :
Carriage with arm
Telescopic stop from 1100 to 1900 mm
Angle stop -45° to 45
Saw blade 254 x 30 x 3.0 mm 40 teeth
Voltage V 230
Power kW 2.1
Max. saw width stop mm 610
Saw blade diameter mm 254
Speed rpm 4000
Working height mm 835
Diameter extraction (top) mm 30
Diameter extraction (bottom) mm 100
Max cutting width without stop mm 845
Maximum cutting height mm 80
Max. length along cut mm 1250
Dimensions runner mm 1320x238
Saw blade angle ° 90-45
Cutting capacity 45° mm 54
Cutting capacity 90° mm 80
Weight kg 150,00
Dimensions (l x w x h) mm 1.320x1.750x1.120
