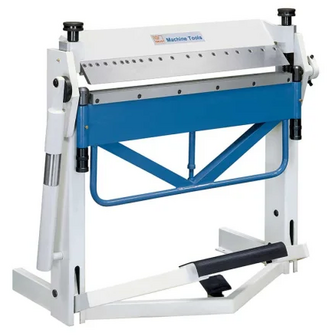

Folding Machines 135° 1270mmL

Folding Machines 135° 1270mmL
The folding machines of the SBS series are used for bending thin sheets. Due to their compact design, they fit easily into small workshops and cover a wide range of applications with their segmented upper tool. With an adjustable angle stop, these folding machines are also suitable for the production of small series.
Compact and torsion-proof
Segmented mal edie for many bending possiblities
Built-in , manual bending compensation
Adjustable angle stop for batch production
Foot switch for top tool clamping for hands-free use
For formed component bending
Compression spring for top counterbalance
Cam lock and rebound spring for bending beam counterbalance
Bow handle for bending beam rotation
Adjustable bending angle stop with scale up to 135°
Segmented top beam tools
Segment size: 25, 30, 35, 40, 45, 50, 75, 100, 150, 200, 250 ,270 mm
Working area
Working length    1270 mm
Plate thickness (max.) - 400 N/mm²    2 mm
Bending bar angle (range)    135°
Measures and weights
Overall dimensions (length x width x height)    1,6 m x 0,9 m x 1,18 m
Weight    330 kg
