Feed roller track 2000 mm

Feed roller track 2000 mm Feed roller tables are available in lengths from 1000 to 3000 mm. All roller tables have height-adjustable supports. It is recommended that the machine be anchored in...

Item number

: T2g-MK 361170

€ 555,00 *

€ 481,00 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

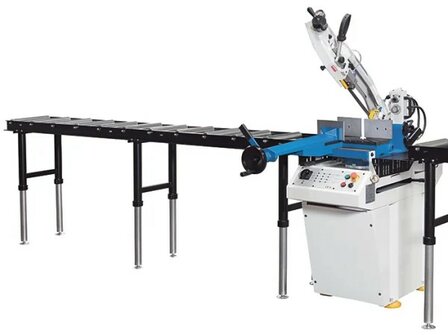

Feed roller track 2000 mm
Feed roller tables are available in lengths from 1000 to 3000 mm. All roller tables have height-adjustable supports. It is recommended that the machine be anchored in order to guarantee stability under high loads. The standard anchoring flange must be adapted to suit the individual conditions. The infeed roller table should always be shorter than the discharge table.
Steel frame made of U-profiles
Bolted cross travels
Steel support rollers
Steel frame made of U-profiles, bolted cross travels
Steel support rollers with bearings for smooth movement
The U-profile is designed to ensure friction-free, smooth material flow, even with lateral projections
Sturdy supports with wide adjustment range
Mounting plate, standard
Roller width: 360 mm
Distance between rollers: 280 mm
Max. load capacity: 1200 kg
Number of supports: 4 positions
Adjustable height: 620 mm - 1030 mm
Weight: 55 kg
Dimensions (L X W X H): 2000 mm x 450 mm x 1030 mm
