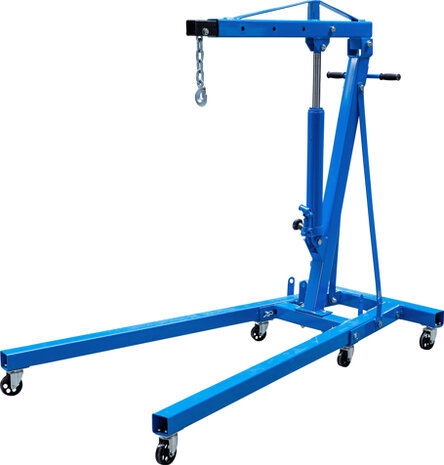

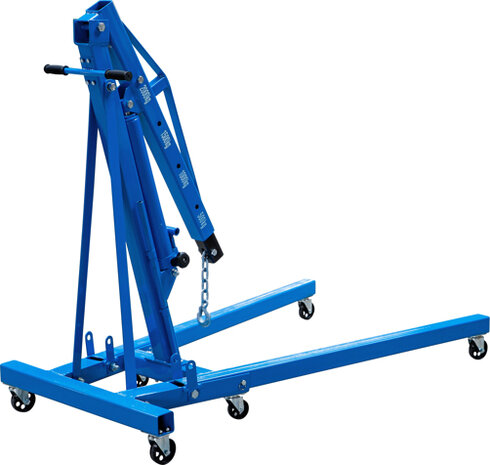

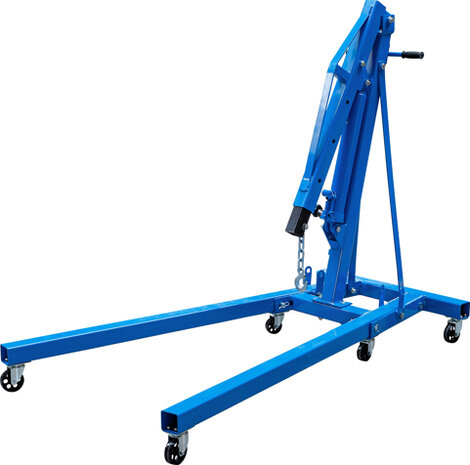

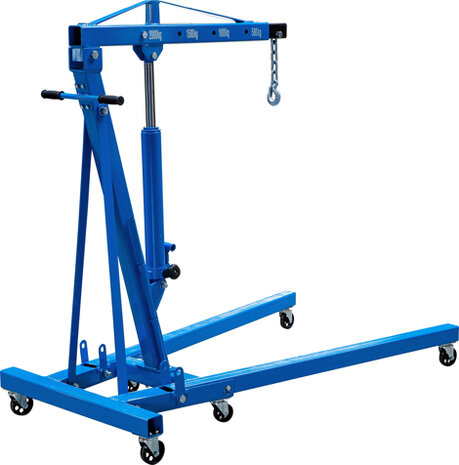

Engine Crane 2000 kg

Engine Crane 2000 kg
heavy duty crane for daily garage use
suitable as a engine crane, for aligning components and machines or for lifting and holding loads in everyday workshop routine
foldable for easy transport and space-saving storage
with hand lever pump
easy lifting and lowering by hydraulic cylinder
easy to move in connection with 2 castors and 4 heavy duty swivel castors
load carrier on the boom with stable chain and safety load hook

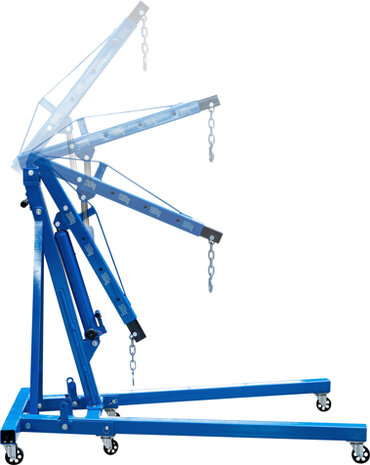

telescopic crane boom with 4-way adjustment options
adjustable lifting arm length in following 4 positions:
crane arm position 1: 860 mm, max. load 2000 kg
crane arm position 2: 1030 mm, max. load 1500 kg
crane arm position 3: 1200 mm, max. load 1000 kg
crane arm position 4: 1370 mm, max. load 500 kg
rated load: max. 2000 kg
lifting range: 25 - 2445 mm
crane arm length: max. 1370 mm
stroke (max. rated load): 1860 mm
min. height (max. rated load): 405 mm
opening width of hook: 18 mm
front wheel dimensions: Ø 110 x 32 mm
middle wheel dimensions: Ø 76 x 30 mm
rear wheel dimensions: Ø 89 x 30 mm
Technical data
Operating temperature    4 - 41 °C
