Electrode inverter LCD 160A 230V + accessories
Features:
Large LCD display with digital automatic setting of welding current based on thickness of workpiece and electrode. Intuitive and easy to set device, which welds very stable and smoothly
High duty cycle of 30%, this device effortlessly welds multiple electrodes of 3.2 mm in succession without stopping
Elevator TIG welding with the optional TIG torch (contact striking, no HF)
Very compact and light, supplied with strong shoulder strap
All electronic arc controls present: Arc force, Hot start, Anti stick and VRD.
Adjustable Hot Start: optimal start of welding, without spatter
Adjustable Arc Force: maintenance of the arc during contact with the weld pool. Even novice welders can work perfectly with this unit.
Anti stick: prevents electrodes from sticking when the welding current is too low
VRD: prevents electric shock in humid environments
Usable electrodes: rutile, basic, stainless steel, cast iron,...
Protection against overload, feed voltage and undervoltage

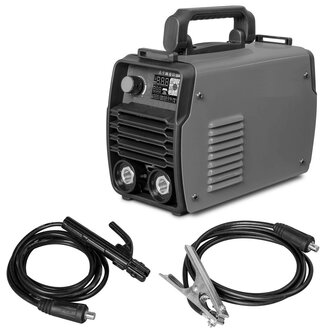

Supplied with:
Shoulder strap
Electrode holder with 3 m cable 16 mm²
Mass pliers with 1.5 m cable 16 mm²
Connector plugs on the machine DX25
Duty cycle:
30%@ 160A
60% @ 113A
100% @88A
Consumables :
Standard electrodes - rutile coated
Welding electrode rutile Ø2x300mm 2,5kg Telwin (art 830802737)
Welding electrode rutile Ø2,5x350mm 2,5kg Telwin (art 830708739)
Welding electrode rutile Ø3,2x350mm 4kg Telwin (art 830802479)
Welding electrode rutile Ø2,0x250 1,6kg (art 711161020)
Welding electrode rutile Ø2,5x350 4,8kg (art 711161025)
Welding electrode rutile Ø3,25x350 5.0kg (art 711161032)
Standard electrodes - basic coated
Welding electrode basic ø2,5x300mm 2.5kg Telwin (art 830802748)
Thick-walled electrodes
Welding electrode rutile Ø2,0x250 1,7kg (art 711162020)
Welding electrode rutile Ø2,5x350 4,6kg (art 711162025)
Welding electrode rutile Ø3,2x350 4.6kg (art 711162032)
Welding electrode rutile Ø4,0x350 4.6kg (art 711162040)
VoltageV 230
Control rangeA 10 - 160
Duty cycle ImaxA @ % 160 @ 30
PowerkW 3,9/7,36
Electrode capacitymm ø2.5 - ø3.2 - ø4.0
No-load voltageV 82
Power factorcos fi 0.76
Protection classIP 21S
Suitable for steel yes
Suitable for stainless steel yes
Suitable for alu yes
Welding type MMA / LIFT TIG
Rutile electrodes yes
Electrodes for stainless steel yes
Basic electrodes yes
Electrodes for stainless steel and cast iron yes
Weight kg 3,50
Dimensions (l x b x h)mm 265x117 x180
