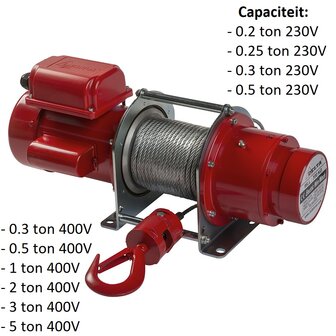

Electric pulling winch single speed

Electric pulling winch single speed
Permanently lubricated transmission, ensures smooth and quiet operation, suitable for pulling operations, suitable for a wide range of industrial applications, supplied ready to use with control switch, power cable and steel cable with hook, complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions.
Application - Pull winch
Voltage - 230V / 50Hz / 1Ph
Pull speed - Single speed
Cable - Steel cable
Steering cable - Standard ≈ 2 meters
Power cable - ≈ 1 meter with plug
Housing protection - IP 44 (from/from 2ton IP 54)
Control protection - IP 65
Classification - M5/2m (ISO/FEM)
Power-on time / Starts per hour - 40% / 240
Insulation class - F
Operating temperature -10°C - +40°C
Load type - Only for goods, not suitable for lifting people
Switch - 230/400V switch with emergency stop
Overload protection - Without overload protection, from 1ton optional
Brake - Mechanical brake, achieves immediate braking effect and holds the load firmly even in case of power failure
Limit switch - No limit switch
Capacity - 0.2 tons
Voltage - 230V
Towing range - 28 meters
Max. pulling speed - 14.1 m/min
Steel wire m x diameter - 30 x 6
Energy consumption - 0.37kw
Weight - 32kg
Capacity - 0.25 tons
Voltage - 230V
Towing range - 28 meters
Max. pulling speed - 14.1 m/min
Steel wire m x diameter - 30 x 6
Energy consumption - 0.6kw
Weight - 36kg
Capacity - 0.3 tons
Voltage - 230V
Towing range - 28 meters
Max. pulling speed - 14.1 m/min
Steel wire m x diameter - 30 x 7
Energy consumption - 0.75kw
Weight - 38kg
Capacity - 0.5 tons
Voltage - 230V
Towing range - 43 meters
Max. pulling speed - 18.9 m/min
Steel wire m x diameter - 45 x 8
Energy consumption - 1.5kw
Weight - 76kg
Capacity - 0.3 tons
Voltage - 400V
Towing range - 28 meters
Max. pulling speed - 14.1 m/min
Steel wire m x diameter - 30 x 7
Energy consumption - 0.75kw
Weight - 38kg
Capacity - 0.5 tons
Voltage - 400V
Towing range - 43 meters
Max. pulling speed - 18.9 m/min
Steel wire m x diameter - 45 x 8
Energy consumption - 1.5kw
Weight - 76kg
Capacity - 1 ton
Voltage - 400V
Towing range - 43 meters
Max. pulling speed - 12.9 m/min
Steel wire m x diameter - 45 x 10
Energy consumption - 2.25kw
Weight - 152kg
Capacity - 2 tons
Voltage - 400V
Towing range - 68 meters
Max. pulling speed - 17.4 m/min
Steel wire m x diameter - 70 x 12
Energy consumption - 3.75kw
Weight - 364kg
Capacity - 3 tons
Voltage - 400V
Towing range - 68 meters
Max. pulling speed - 19.7 m/min
Steel wire m x diameter - 70 x 16
Energy consumption - 5.62kw
Weight - 391kg
Capacity - 5 tons
Voltage - 400V
Towing range - 68 meters
Max. pulling speed - 12 m/min
Steel wire m x diameter - 70 x 20
Energy consumption - 7.5kw
Weight - 472kg
