Electric wire rope hoist 500/999kg

Electric wire rope hoist 500/999kg

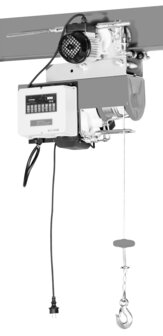

Electric wire rope hoist with trolley, 999 kg, 230 V, with wireless remote control.
Complete set, suitable for mounting on H-beams, gantry cranes, slewing cranes, gantries and other steel rails.
Advantages:
The complete set is motorized: both lifting and driving of trolley
1 wireless remote control for operation of trolley and hoist
No cables in the way and easy operation from any position of the operator
Trolley suitable for common IPE and H beams from 68 mm wide onwards
Characteristics:
500 kg lifting capacity
999 kg lifting capacity in double duty, using the supplied hook with pulley. The cable with fixed hook is hung in the eye provided at the bottom of the frame of the hoist, and the load is suspended on the hook with pulley
Motor power: 1.6kW
When working with the pulley, capacity doubles and cable length halves
Trolley travel speed 16m/minute
Unit with 2 separate induction motors: without carbon brushes
Remote control with push buttons up/down, left/right and emergency stop
Trolley suitable for beams with radius up to 1 m
Limit switch and anti-reverse switch
IP54 protection class and CE approved
Switch-on time: 20%, per 10 minutes 2 minutes can be hoisted
Supplied with:
Wireless remote control
Power cable 65cm with plug
Note: Hoist and trolley should be mounted on the steel beam by the customer, all installation materials are included in the box. Estimated installation time: 1 hour.
Voltage V 230
Power kW 1.6
Lifting speed m/min 8
Length of cable m 18
Cordless Feature
Capacity double kg 999
Capacity single kg 500
Beam width (M) mm 68 - 110
Speed trolley m/min 14.5
Power trolley W 180
Weight kg 31,50

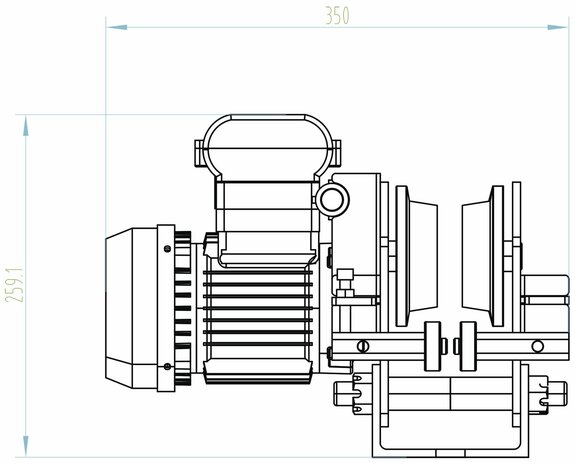

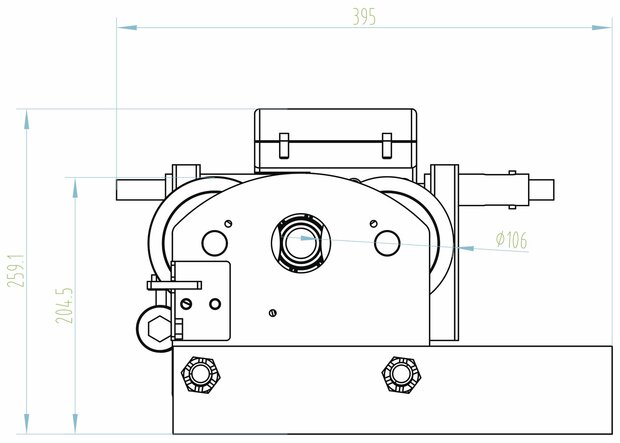

Dimensions (l x w x h) mm 440x350x460
