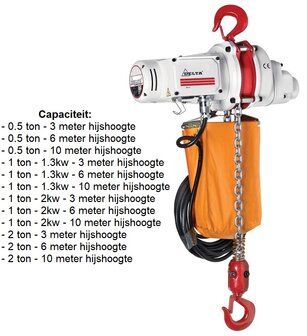

Electric chain hoist 230V single speed

Electric chain hoist 230V single speed
Swivel load hook with safety valve, suitable for a wide range of industrial applications, should not be missing in any service vehicle; makes your mechanic ARBO-proof, easy to operate and transport due to its low weight, delivered ready for use with control switch, power cable and chain box, complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE conformity declaration and operating instructions.
Extra weight kg/m - 0.9
Voltage - 230V / 50-60Hz / 1Ph (110V on request)
Hoisting speed - Single speed
Lifting chain - Load chain according to EN 818-7-DAT/DT
Control cable - Standard ≈ 6 meter
Power cable - ≈ 5 meter with plug
Protection of housing - IP 54
Protection of the control unit - IP 65
Rating - M4/1Am (ISO/FEM)
Duty cycle / Starts per hour - 30% / 180
Insulation class - F
Operating temperature -10°C - +40°C
Load type - Only for goods, not suitable for lifting people
Switch - 230V switch with emergency stop
Overload protection - Externally adjustable slipping clutch
Brake - Mechanical brake
Limit switch - US.901 + 902: No limit switch, protected by slip clutch, US.903 + 904: Electromagnetic top limit switch, lowest position protected by slip clutch
Thermal protection - No protection
Capacity - 0.5 tons - 3 meters lifting height
Lifting speed m/min - 5
Lifting chain diameter x mm - 6.3 x 19
Parts - 1
Energy consumption kW - 1.3
Net weight - 16kg
Capacity - 0.5 tons - 6 meters lifting height
Lifting speed m/min - 5
Lifting chain diameter x mm - 6.3 x 19
Parts - 1
Energy consumption kW - 1.3
Net weight - 16kg
Capacity - 0.5 tons - 10 meters lifting height
Lifting speed m/min - 5
Lifting chain diameter x mm - 6.3 x 19
Parts - 1
Energy consumption kW - 1.3
Net weight - 16kg
Capacity - 1 ton - 1.3kw - 3 meters lifting height
Lifting speed m/min - 2.5
Lifting chain diameter x mm - 6.3 x 19
Parts - 2
Energy consumption kW - 1.3
Net weight - 17kg
Capacity - 1 ton - 1.3kw - 6 meters lifting height
Lifting speed m/min - 2.5
Lifting chain diameter x mm - 6.3 x 19
Parts - 2
Energy consumption kW - 1.3
Net weight - 17kg
Capacity - 1 ton - 1.3kw - 10 meters lifting height
Lifting speed m/min - 2.5
Lifting chain diameter x mm - 6.3 x 19
Parts - 2
Energy consumption kW - 1.3
Net weight - 17kg
Capacity - 1 ton - 2kw - 3 meters lifting height
Lifting speed m/min - 4
Lifting chain diameter x mm - 7.1 x 20.2
Parts - 1
Energy consumption kW - 2
Net weight - 26kg
Capacity - 1 ton - 2 kW - 6 meters lifting height
Lifting speed m/min - 4
Lifting chain diameter x mm - 7.1 x 20.2
Parts - 1
Energy consumption kW - 2
Net weight - 26kg
Capacity - 1 ton - 2 kW - 10 meters lifting height
Lifting speed m/min - 4
Lifting chain diameter x mm - 7.1 x 20.2
Parts - 1
Energy consumption kW - 2
Net weight - 26kg
Capacity - 2 tons - 3 meters lifting height
Lifting speed m/min - 2
Lifting chain diameter x mm - 7.1 x 20.2
Parts - 2
Energy consumption kW - 2
Net weight - 31kg
Capacity - 2 tons - 6 meters lifting height
Lifting speed m/min - 2
Lifting chain diameter x mm - 7.1 x 20.2
Parts - 2
Energy consumption kW - 2
Net weight - 31kg
Capacity - 2 tons - 10 meters lifting height
Lifting speed m/min - 2
Lifting chain diameter x mm - 7.1 x 20.2
Parts - 2
Energy consumption kW - 2
Net weight - 31kg
