Drilling cutter 480x175x370 mm

Drilling cutter 480x175x370 mm

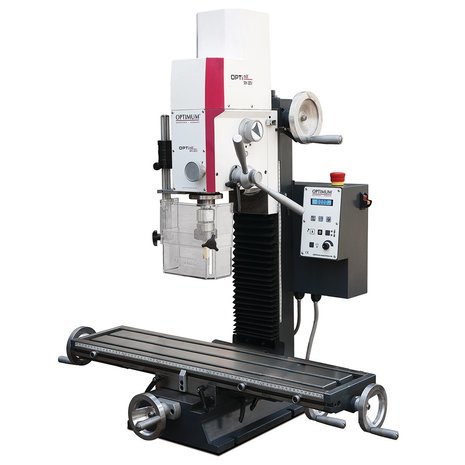

Stable drill milling machine with infinitely variable drive, and digital speed display.
Trumps:
Spindle intake BT20
With digital display of spindle speeds as drilling depth
Simple mechanical tool change by means of a rocker arm
With infinitely adjustable speed with potentiometer
Drilling cutter head adjustable at angle +/-90°
With user-friendly control panel

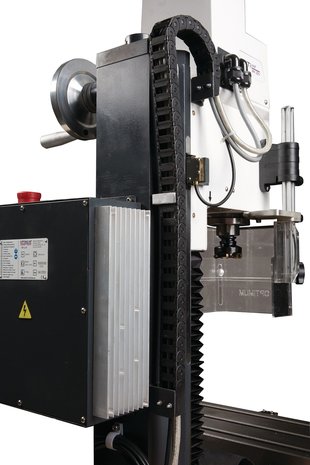

Cables from drill cutter head to column in cable tray
Machine fully assembled
Characteristics:
Extremely stable milling head
Precision finished
Machine lighting

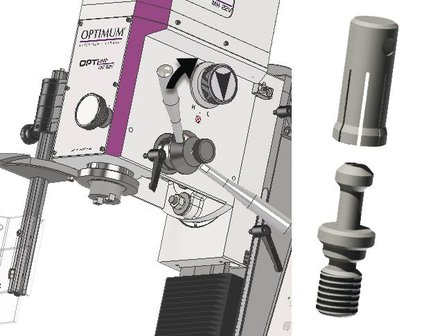

Mechanical quick-change system, for tensioning holders with BT20x45° tightening bolts
All guides are sharpened and hand-scraped (oil collection for lubrication)
The shafts are equipped with two-row angular contact bearings, backlash-free adjustment
Straight / left running
Solid and precise dovetail design with adjustable keyways on the 3 axes
Silent powerful electric motor of 950 Watt. Direct current motor with permanent speed monitoring
Solid and precisely ground cross table with T-slots and coolant edge
Bellows protector for the Z axis

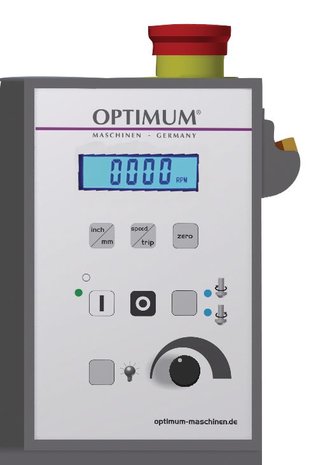

User-friendly control panel, with fingertip contacts is sufficient to activate the touch function
With separate clear electrical cabinet
Safeties:
User-friendly control buttons with separate start and stop pushbuttons and separate emergency stop
Zero load voltage
Electrical safety components in 24V version
EMF filter class B (Used in private households)
Solid drill shield double window, equipped with safety switch
Main switch
Standard delivered with:
Operating keys
Dutch manual, inscriptions, CE marking, and CE certificate according to Machine Directive 2006/42/CE, and EMC Directive 2014/30/CE.
Voltage V 1x230
Power kW 0.95
Maximum milling capacity flat milling mm 52
Maximum milling capacity finger milling mm 12
Spindle intake BT20
Unload mm 170
Drilling capacity in continuous use S235JR mm 16
Drill bit cap. in steel S235JR mm 20
Drilling depth mm 50
Swivel head ° +/-60
Number of speeds 2 stages variable
Spindle speed min-1 90-3000
Route X-axis mm 480
Roadway Y-axis mm 175
Z-axis roadway mm 270
Dimensions table (W x D) mm 700x180
Dimensions T-slots/distance mm 12/63/3
Maximum loadable weight kg 50
Weight kg 120.00
Dimensions (l x w x h) mm 950x745x650
