Drilling cutter 480x175x210 mm

Drilling cutter 480x175x210 mm

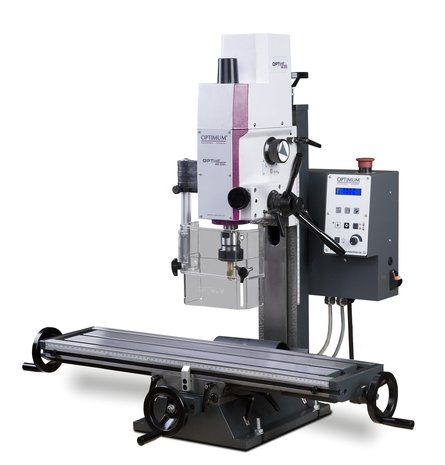

Stable drill milling machine with infinitely variable drive, and digital speed display.
Trumps:
Infinitely variable speed with potentiometer
Recording MK2/M10
Digital display of spindle speeds as drilling depth
Drilling cutter head adjustable at angle +/- 60°
With turning wheel for fine feeding
With user-friendly control panel
Long work table with longitudinal displacement of 480 mm
Characteristics:
Extremely stable milling head
Precision finished
Machine lighting
All guides are sharpened and hand-scraped (oil collection for lubrication)
The shafts are equipped with two-row angular contact bearings, backlash-free adjustment
Straight / left running
Solid and precise dovetail design with adjustable keyways on the 3 axes
Quiet powerful electric motor of 750 Watts. Direct current motor with permanent speed monitoring
Solid and precisely ground cross table with T-slots and coolant edge
Bellows protector for the Z axis
User-friendly control panel, with fingertip contacts is sufficient to activate the touch function
With separate clear electrical cabinet
Safeties:
User-friendly control buttons with separate start and stop pushbuttons and separate emergency stop
Zero load voltage
Electrical safety components in 24V version
EMF filter class B (Used in private households)
Solid drill shield double window, equipped with safety switch
Main switch
Standard delivered with:
Operating keys
Dutch manual, inscriptions, CE marking, and CE certificate according to Machine Directive 2006/42/CE, and EMC Directive 2014/30/CE.
The upgrade version of the BF20L Vario!
Voltage V 1x230
Power kW 0.75
Drill cap. in steel S235JR mm 16
Drilling capacity in continuous use S235JR mm 12
Maximum milling capacity flat milling machine mm 52
Maximum milling capacity finger milling mm 20
Spindle intake Morse Cone MK 2/M10
Unload mm 170
Drilling depth mm 50
Swivel head ° +/-90
Number of speeds Variable (2-speed)
Spindle speed min-1 100-3000
Route X-axis mm 480
Roadway Y-axis mm 175
Route Z-axis mm 210
Dimensions table (W x D) mm 700x180
Dimensions T-slots/distance mm 12/3/63
Maximum loadable weight kg 50
Weight kg 99.00

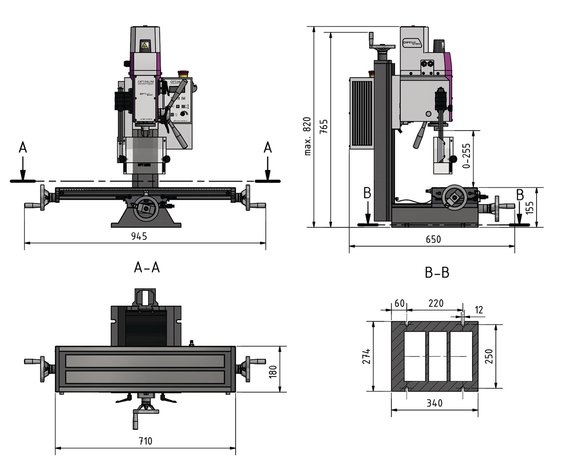

Dimensions (l x w x h) mm 770x714x917
