Drill cutter 450x200x460 mm

Drill cutter 450x200x460 mm

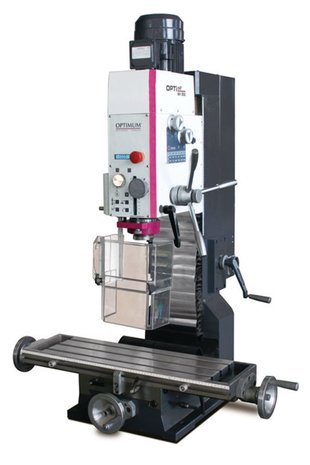

Universal precision drill with gearing, and digital speed display.
Trumps:
Spindle intake MAS403 BT30
Digital display of spindle speeds LED
Simple mechanical tool change by means of a rocker arm
Drilling cutter head adjustable at angle +/- 60°
With user-friendly control panel
Integrated tapping function
Machine fully assembled
Characteristics:
Extremely stable milling head
Precision finished
High concentricity accuracy due to tapered roller bearing, better than 0.015 mm measured in the spindle
Machine lighting

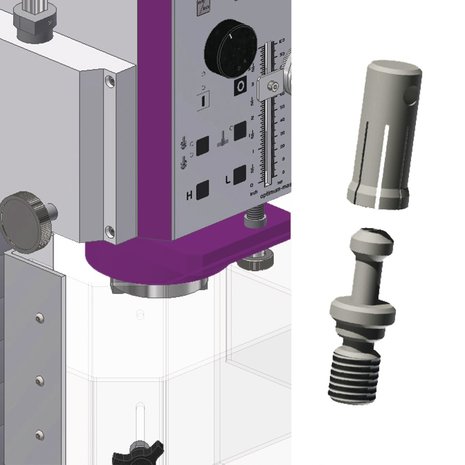

Mechanical quick-change system, for tensioning holders with BT30x45° tightening bolts
Handwheel for fine manual feeding
All guides are sharpened and hand-scraped (oil collection for lubrication)
The shafts are equipped with angular contact bearings, backlash-free adjustment
Straight / left running
Solid and precise dovetail design with adjustable keyways on the 3 axes
Quiet powerful two-speed motor of 1.1/1.5 kW.
Large-dimensioned clamping lever for powerful spindle clamping
Solid and precisely ground cross table with T-slots and coolant edge
Metal salmon tail protection for the Z-axis
Counterweight prevents the Z axis from moving from position
Easy to use control panel, with fingertip contacts is sufficient to activate the touch function, as well as a rotary knob for setting the drilling depth in mm/inch and setting the zero point.

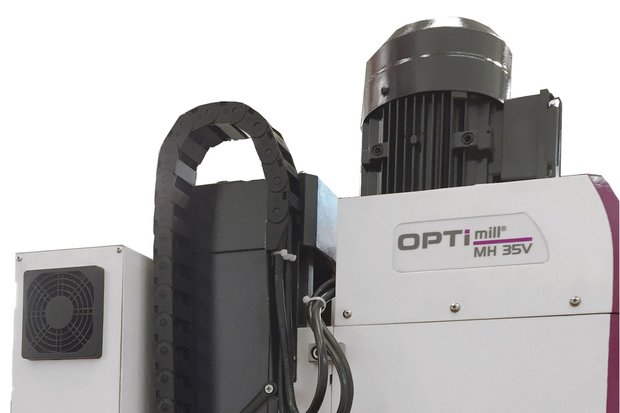

Cables run in a cable duct from the milling head to the column
With separate clear electrical cabinet
Safeties:
User-friendly control buttons with separate start and stop pushbuttons and separate emergency stop
Zero load voltage
Solid drill shield double window, equipped with safety switch
Lockable main switch
Standard delivered with:
Operating keys
Dutch manual, inscriptions, CE marking, and CE certificate according to Machine Directive 2006/42/CE, and EMC Directive 2014/30/CE
Tip: Supplied without plug according to EN50178. This machine is equipped with a BT30 spindle, to be able to clamp your holders, you need to use tightening bolts, 790003068 don't forget to order these extra.
Voltage V 3x400
Power kW 1.1/1.5
Drill cap. in steel S235JR mm 32
Drilling capacity in continuous use S235JR mm 28
Maximum milling capacity flat milling cutter mm 80
Maximum milling capacity finger milling mm 28
Spindle intake BT30
Unload mm 215
Drilling depth mm 90
Swivel head ° +/-60
Number of speeds 2 x 6
Spindle speed min-1 220-3100
Route X-axis mm 450
Roadway Y-axis mm 200
Z-axis roadway mm 460
Dimensions table (W x D) mm 750x210
Dimensions T-slots/distance mm 12/3/63
Maximum loadable weight kg 170
Weight kg 316.00

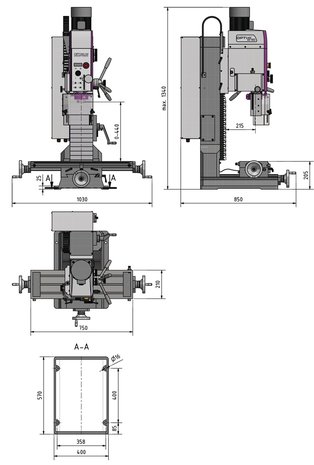

Dimensions (l x w x h) mm 850x1.030x1.340
