Discharge roller track 2000 mm

Discharge roller track 2000 mm
Discharge roller tables are available in lengths from 1000 to 3000 mm. Discharge roller tables have a manually adjustable linear stop that can be positioned anywhere over the entire table length. All roller tables have height-adjustable supports. It is recommended that the machine be anchored in order to guarantee dimensional constancy and stability under high loads. The anchoring flange may be individually adapted for that if necessary. The discharge roller table can always be shorter than the infeed table.
Steel frame made of U-profiles
Bolted cross travels
Steel support rollers
Steel frame made of U-profiles, bolted cross travels
Steel support rollers with bearings for smooth movement
The U-profile is designed to ensure friction-free, smooth material flow, even with lateral projections

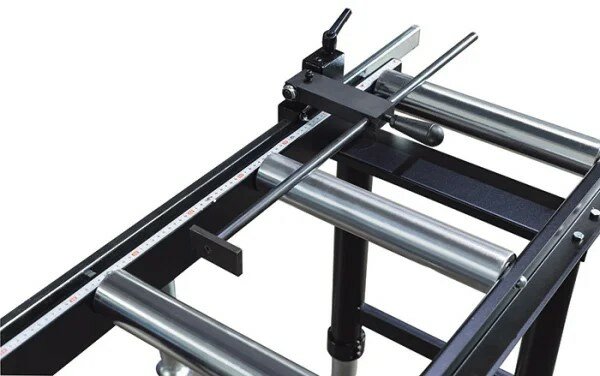

Material discharge roller track with adjustable linear stop
Sturdy supports with wide adjustment range
Mounting plate, standard
Roller width: 360 mm
Distance between rollers: 280 mm
Max. load capacity: 1200 kg
Number of supports: 4 positions
Adjustable height: 620 mm - 1030 mm
Weight: 60 kg
Dimensions (L X W X H): 2300 mm x 465 mm x 1030 mm
