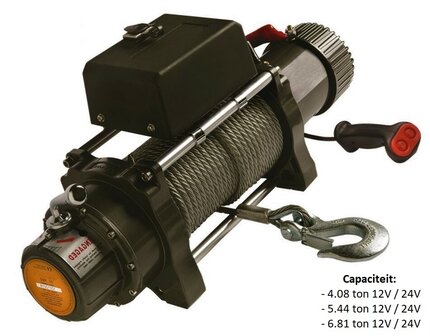

Electric winch with detachable remote control box

Electric winch with detachable remote control box
With freewheel lever, only suitable for towing work, only suitable for recovery of vehicles or boats, permanently lubricated transmission, ensures smooth and quiet operation, supplied with control switch, power cable and steel cable with hook, the vehicle battery must be powered by a constantly running motor, complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions.
Application - Pull winch
Voltage - 12V / 24V
Pull speed - Single speed
Cable - Steel cable
Steering cable - Standard ≈ 1 meter
Power cable - ≈ 1 meter with battery connectors
Housing protection - IP 68
Control protection - IP 65
Operating temperature -20 ° C - +85 ° C
Load type - Only for goods, not suitable for lifting people
Overload protection - Without overload protection
Brake - Mechanical brake
Limit switch - No limit switch
Capacity 1st layer - 4.08 tons
Capacity upper layer - 2.81 tons
Towing range - 26m
Max. 1st layer pulling speed - 2.3 m/min
Steel wire m x diameter mm - 28 x 8
Power consumption
- 12V - 4.4kW
- 24V - 6kW
Weight - 39kg
Capacity 1st layer - 5.44 ton
Capacity upper layer - 3.40 ton
Haul range - 24m
Max. 1st layer pulling speed - 2.1 m/min
Steel wire m x diameter mm - 26 x 9.5
Power consumption
- 12V - 5kW
- 24V - 6.4kW
Weight - 44kg
Capacity 1st layer - 6.81 ton
Capacity upper layer - 4.02 ton
Towing range - 24m
Max. 1st layer pulling speed - 1.3 m/min
Steel wire m x diameter mm - 26 x 11.5
Power consumption
- 12V - 5.3kW
- 24V - 7.1kW
Weight - 70kg
